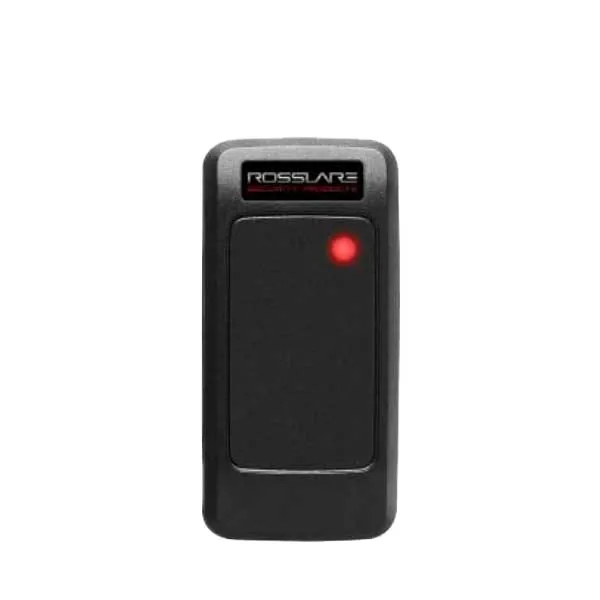

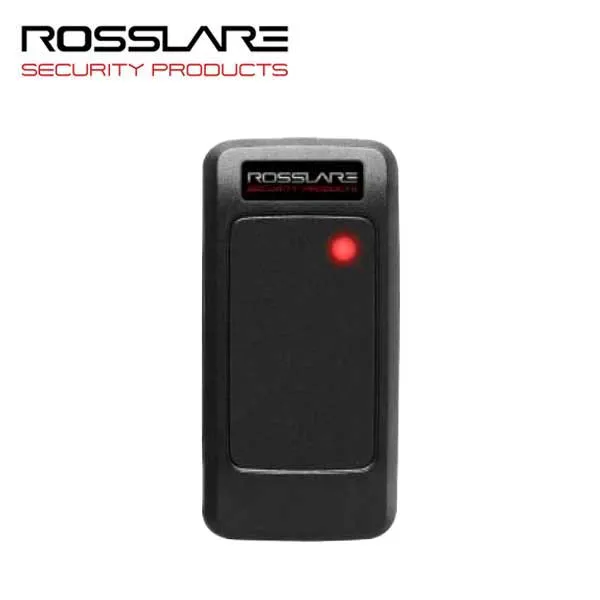

Rosslare's AY-K25B is a reliable reader capable of reading MIFARE Classic® EV1 smart card Contactless cards utilizing any standard access control system. With 7 selectable output formats, it is suited to most existing systems by reading only the required information from the card. The AY-K25B reader is fully potted, sealed, and made of rigid, UV resistant poly-carbonate housing, which make them highly suitable for outdoor use. This reader is a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard. The AY-K25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems.
Features
- Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol
- Read range between of 6 to 7 cm (2.4 to 2.8 in.)
- Programmable output formats including standard Wiegand 26-Bit
- Selectable LED control and buzzer control functions
- Made of tough Polycarbonate plastic for improved performance in all weather conditions
- Optical back tamper detection
- Internal buzzer
- PC software and programming adapter (MD-08B) for easy configuration
- Weather Resistant
Specifications:
| Operating Voltage Range: | 5-16 VDC, from a regulated power supply |
| Standby/Max Input Current: | 35 mA / 55 mA |
| Tamper Output: | Open collector, active low, max. sink current 16 mA |
| Inputs: | Programmable LED and buzzer control inputs, N.O, Dry Contact |
| Indicators: | Tri-colored LED indicators |
| Output Format: | Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data |
| Proximity Card Reader: | MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal. |
| Max. Read Range: | 2.4 in. |
| Design: | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Dimensions: | 3.2 x 1.6 x 0.5 in. |
| Product Warranty: | 5-Year Limited Product Warranty |
| Device Certifications: | IP65 |
