Product Details
＋

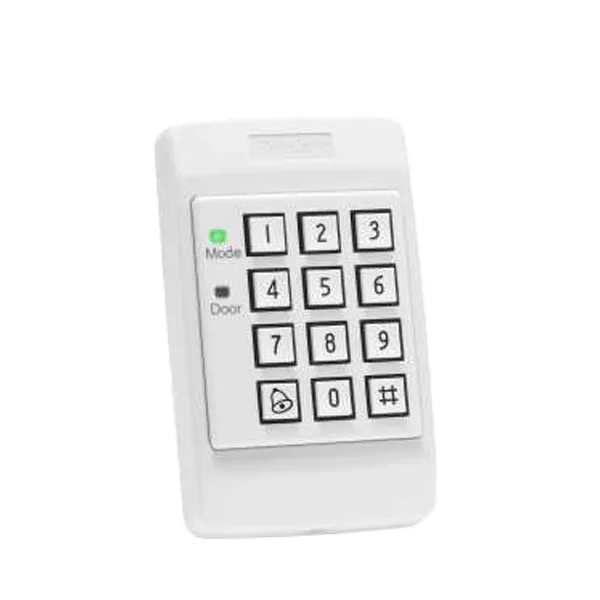

one in a highly sophisticated line of standalone controllers, ideal for residential and commercial access applications. The controller services up to 500 users and allows entry by proximity cards and PIN codes. The attractively designed AC-D32 is easy to program and easy to use. This advanced standalone controller is packed with features such as eight auxiliary modes, multiple user levels, multiple modes of operation, and back and case tamper protection.
Features
- Supports up to 500 users
- Access via proximity card and/or PIN code
- Compatible with 26-Bit EM proximity cards
- Two tri-colored LED and internal buzzer indicators
- Lock strike relay outputs
- Input for Request-to-Exit (REX) button
- Internal case and wall tamper detection
- Supplied with a security screw, security screw tool, and a mounting template
- Three user levels: Normal, Secure, Master
- Three operational modes: Normal, Bypass, Secure
- Bell, chime, siren and strobe available when used with the BL-D40
- Built-in 125 kHz ASK type EM RFID proximity reader
Specifications:
| Operating Voltage Range: | 12–16 VDC From a regulated power supply |
| Input Current: | Standby: 40 mA Maximum: 90 mA |
| Relay Outputs: | Lock Strike Relay – Electronic, 3.5 A with built-in suppressor protection Auxiliary Relay – Form C, 1A |
| Inputs: | REX – N.O., Dry Contact. Auxiliary Input (In/Monitor) Monitor Mode – N.C., Dry Contact Input Mode – N.O., Dry Contact |
| LEDs | Two tri-colored LEDs |
| Compatible Cards |
All 26-Bit EM proximity cards |
| Capacity | Supports up to 500 users |
| Modulation |
ASK at 125 kHz |
| Maximum Reading Range | 90 mm (3.5 in) |
| User levels: |
Normal, Secure, Master |
| Operational Modes: | Normal, Bypass, Secure |
| RFI Protection: | > 20 V/m up to 1000 MHz |
| Dimensions: | 4.8 x 2.95 x 0.94 in |
| Rated: | Indoor Use |
| Manufacturer's Warranty: | 2-Year Limited Product Warranty |
