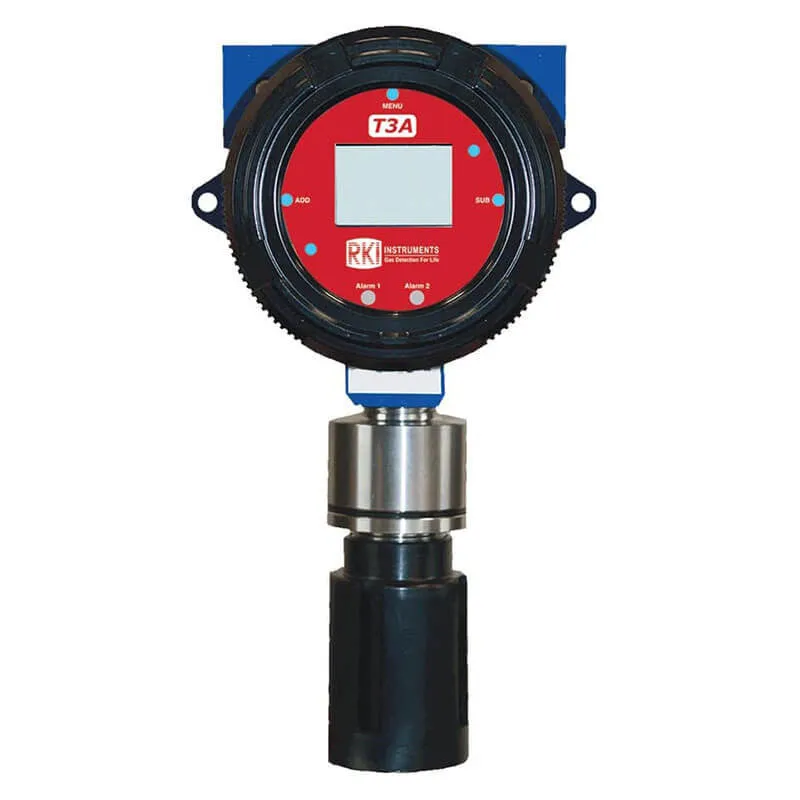

RKI T3A Sensor/Transmitter with J-Box is a versatile assembly CH4 specific LEL Infrared gas detector. This Hydrocarbon specific LEL monitor is 3-Wire Loop-Powered (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.
Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: , , , or Controllers.
Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Chemical plants
Key Features:
- Hydrocarbon (CH4) 0-100% LEL, IR
- Wire powered (3-Wire), 12 to 35 VDC operating voltage
- Operating temperature range -40°C to 60°C
- LCD display with LED back-light
- 3 Push-button interface (ADD, MENU, SUB)
- Non-intrusive buttons using magnetic wand
- 2 Individually configurable alarms
- 2 Front panel LED indicators (amber and red)
- 2 Optional fully programmable alarm relays (dry contacts)
- Output options: 4-20mA (3-wire) analog, RS-485 Modbus, both standard Industry Applications
- 1-Year warranty
Specification Sheet:
Manual:
66-6351-10 - CH4, 0-100% LEL IR
