Direct SDI Portable Silt Density Index Test Kit (SDI Tester) SDI-2000
Suspended solids and colloidal materials in feed water are one of the biggest problems in reverse osmosis systems. Silt Density Index (SDI) is the established measurement of this fouling problem, in which a 0.45 micron filter is exposed to the feed water under pressure and filtration rates are calculated. In most cases, an SDI of less than 5 is considered acceptable for the reverse osmosis systems.

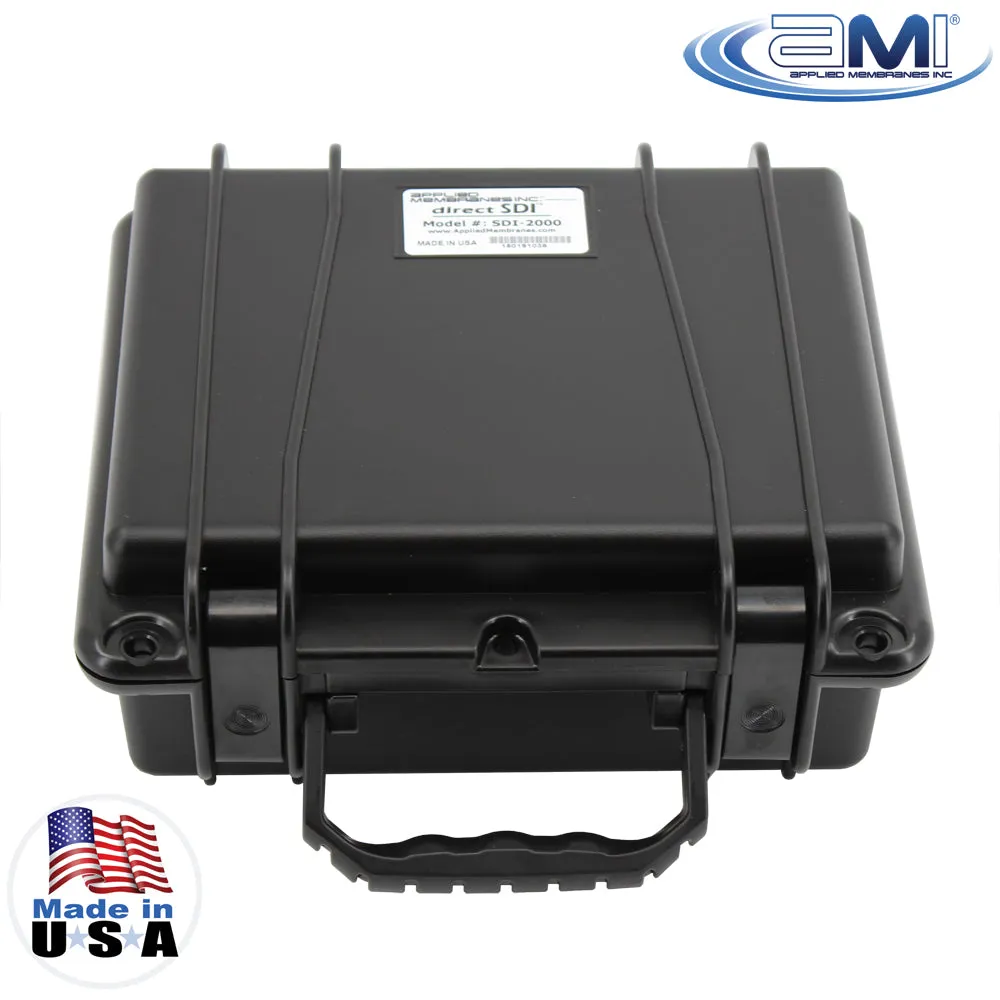

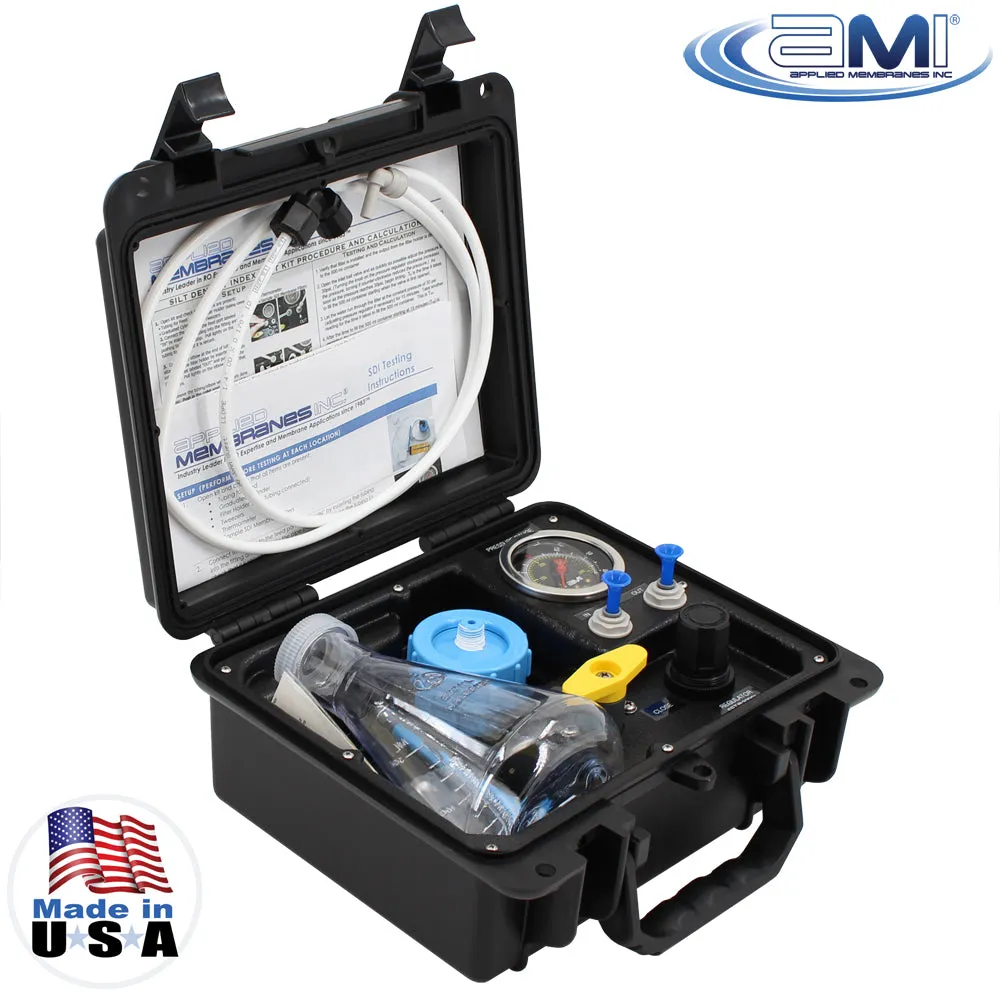

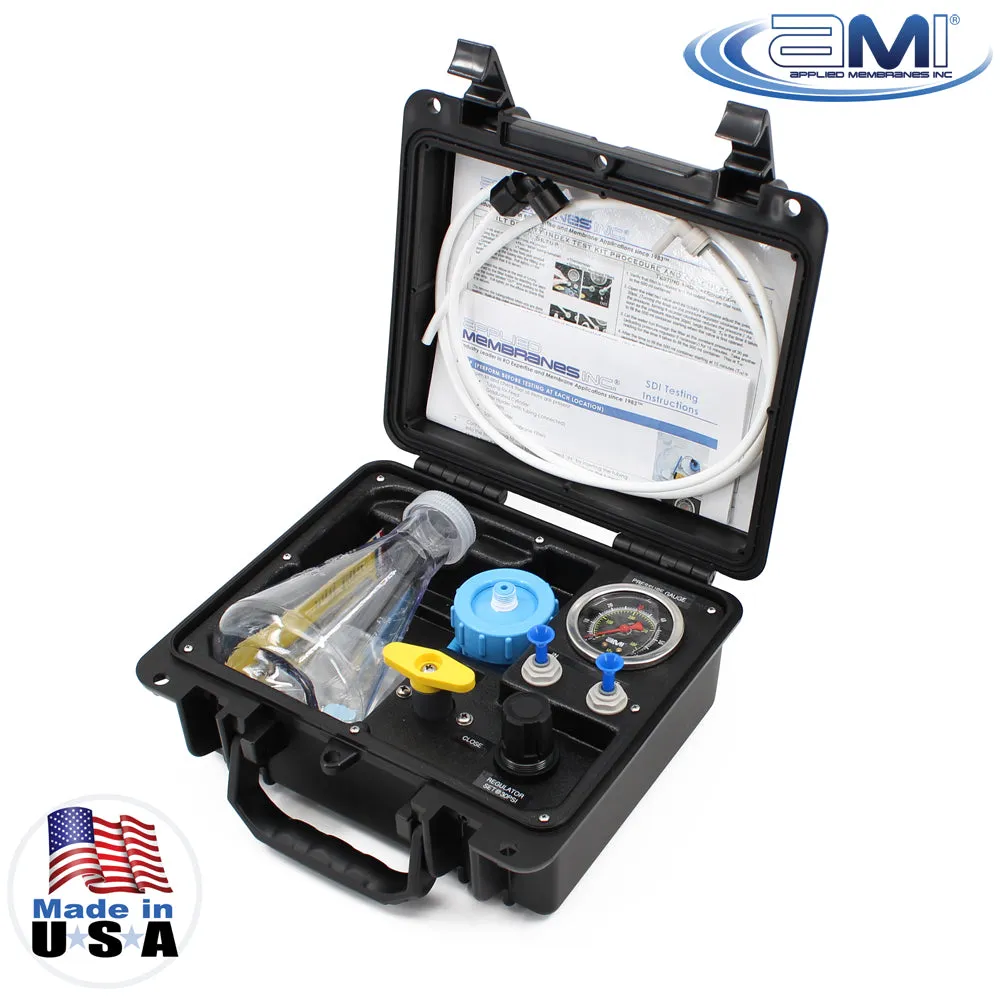

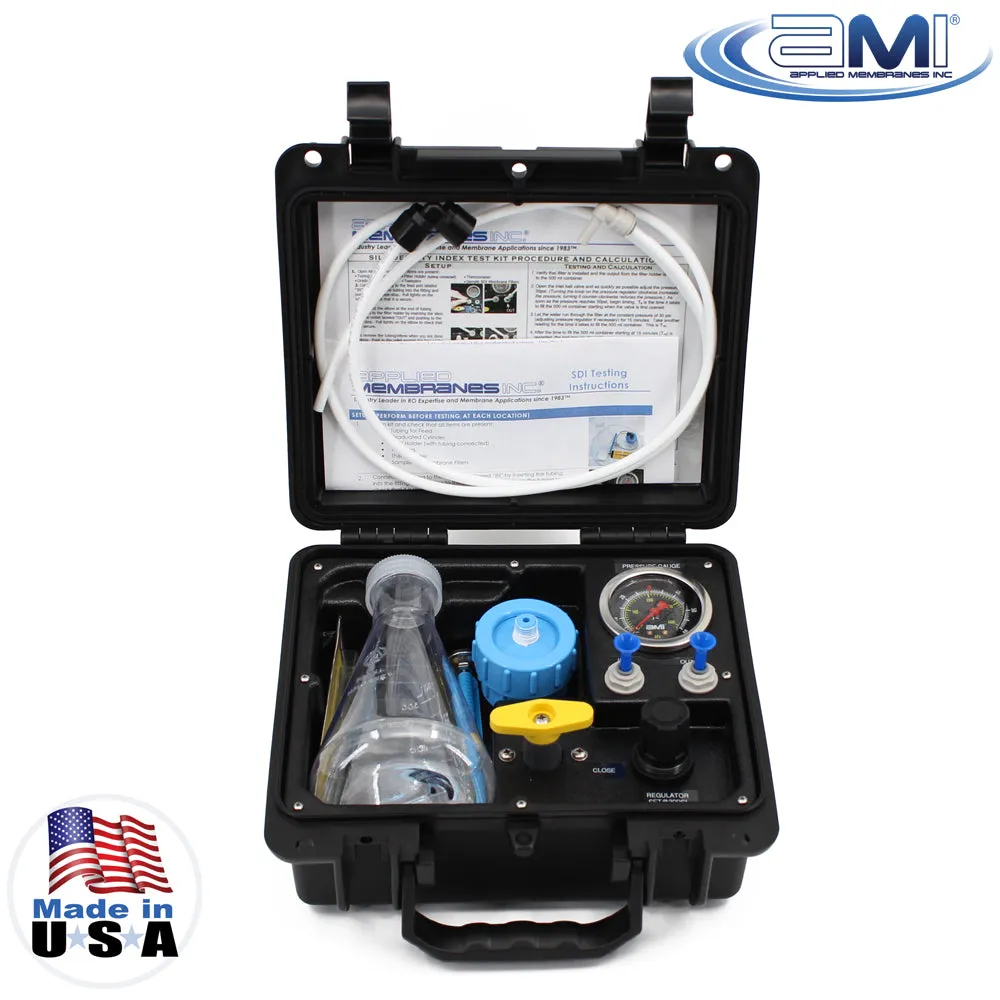

AMI’s direct SDI test kit is completely assembled in a portable, compact case, ready for on-site testing. Quick-Connect In and Out connections are built into product panel for fast and easy connection and disconnection on site.
Includes ASTM instructions for measuring silt density index. Minimum of 30 PSI water pressure required. Optional Pump Assembly Kits are offered for pressures below 30 PSI.

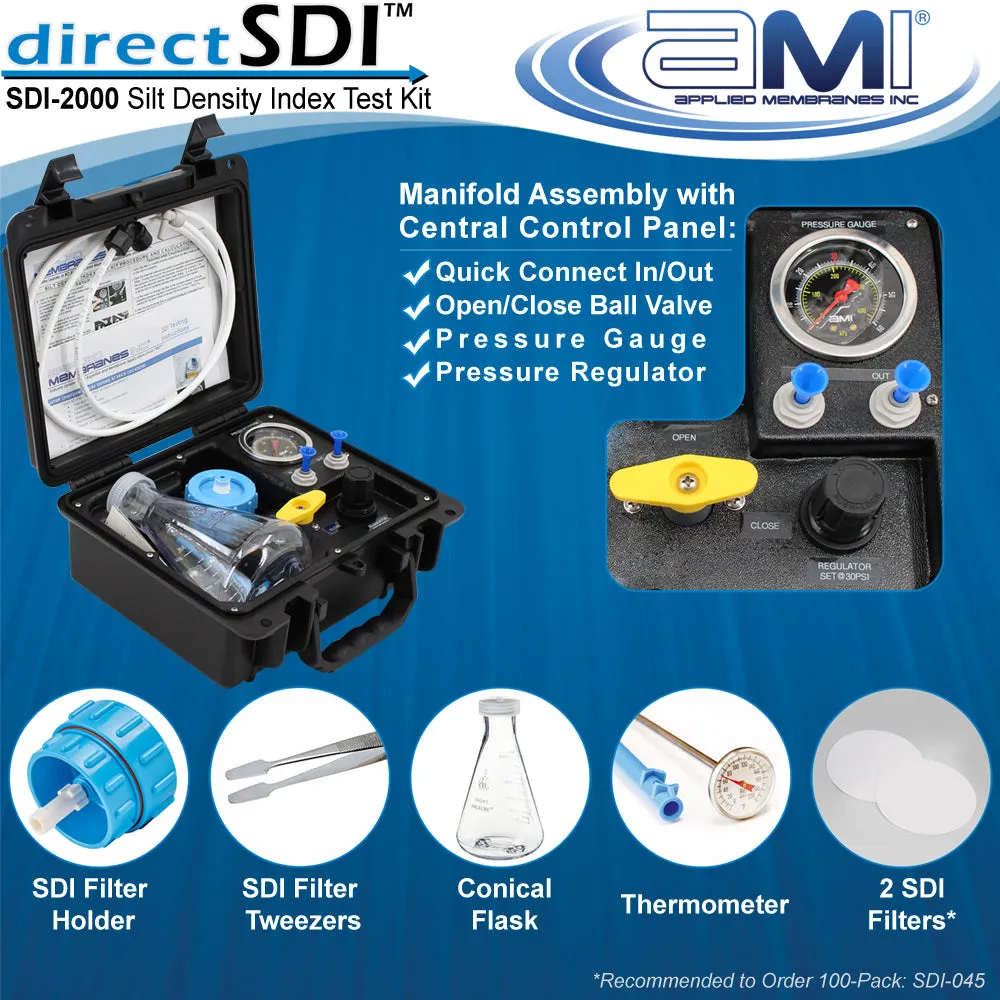

SDI Test Kit Assembly Includes:
- Filter Holder
- Pressure Gauge
- Pressure Regulator
- Ball Valve
- Graduated Cylinder
- Thermometer
- Tubing
- Filter Tweezers
- ASTM SDI Test Instructions
SDI-2000 Silt Density Index test kit includes two SDI filters. An additional filter pack should also be purchased.
|
SDI Filter Packs
Kit includes two SDI filters. A filter pack should also be purchased.
|
Filters for SDI Testing 47mm 0.45 MF white disk membrane filters.
Pack of 100
|
SDI Tester Options and Replacement Parts
|
|
|
Portable booster pump assembly for pressures under 30 PSI. (European Voltage) |
|
Portable booster pump assembly for pressures under 30 PSI. (Japan Voltage) |
|
Replacement SDI Filter Holder |
|
