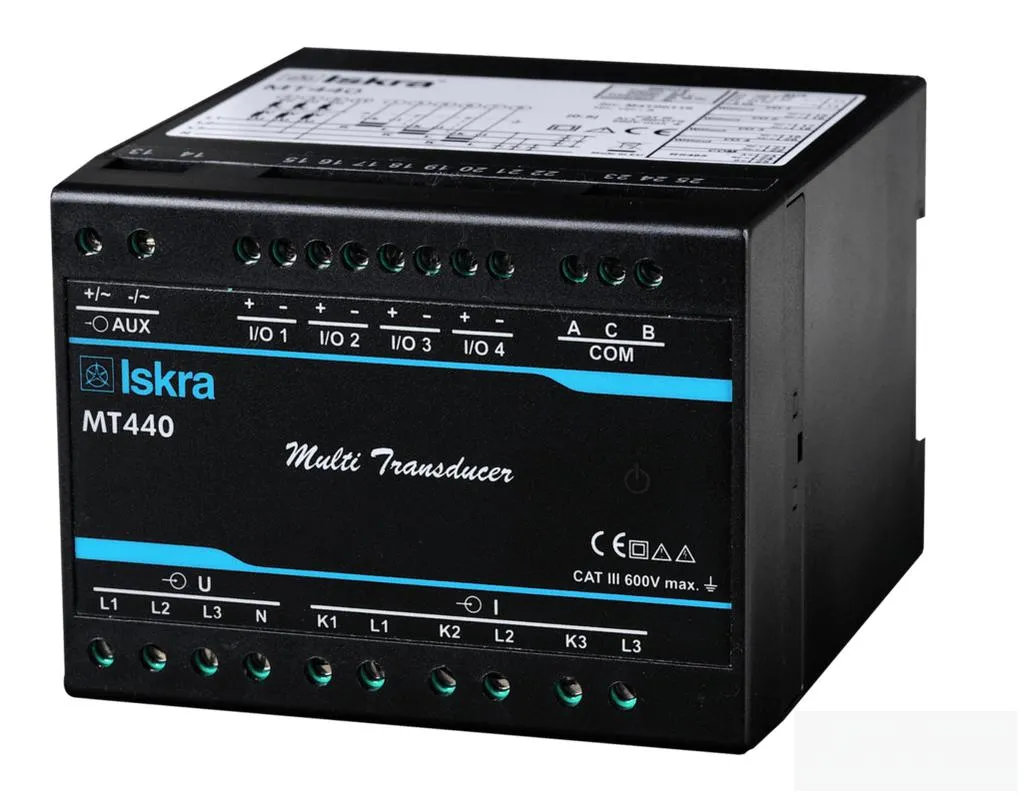

Iskra Doo MT440-SSUDAANNA, Multifunction Power Transducer, Class 0.5, 4 Wire, 600V L-N, 1/5/10Amp AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 2 Programmable analogue outputs, RS485 & USB Comms

• Class 0.5 (EN 60688)
• USB Comms as standard
• Up to 4 I/O Modules (analogue output, Multiple break point, non-linear characterstics
• Automatic range of nominal current up to 12.5 A (Includes 5A/1A CT Input) and nominal voltage up to 600 V L-N
• Adjustable tariff clock, display of electric energy consumption in optional currency
• RMS values of currents and voltages
• Measurements of active, reactive, apparent power and power factor
• Measurements of energy in all 4 quadrants Average values of measurands per interval
• Certified ship version available

The Power Transducer is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

Features :

• Measurement of instantaneous values of more than 50 quantities (U, I, P, Q, S, PF, PA, f, f, MD, etc.).

• Accuracy class 0.5

• 32 Adjustable Alarms
• Input frequency 50/60 Hz or 400 Hz
• RS 232/RS485 communication up to 115,200 bit/s (Optional) or USB communication as standard
• MODBUS RTU communication protocol
• Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
• Universal Supply 24-300VDC or 40-276VAC
• Automatic range of nominal current up to 12.5 A and nominal voltage up to 600 V
• User-friendly PC MiQen software
