Product Details
＋

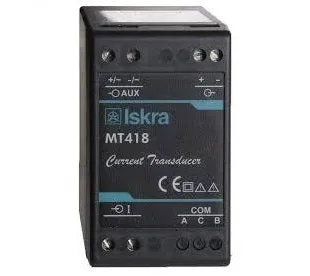

Iskra Doo MT418-1112, Programmable AC Current Transducer, single phase, 50/60Hz 5A AC input, 240VAC Aux Supply, 0-10V or 4-20MA output, RS232
- Class 0.5 (EN 60688)
- USB Comms as standard
- 0-10V or 4-20mA analogue output modules
- RMS values of current
- Simpel setting with USB self powered port
Features :
- Measurement of nominal CT Current 0-12Amp
-
Accuracy class 0.5
- Input frequency 16 - 400 Hz
- RS 232/RS485 communication up to 115,200 bit/s or USBcommunication
- MODBUS RTU communication protocol
- Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
- Universal Supply 24-300VDC or 40-276VAC
- User-friendly PC MiQen software
Specification
| Iskra Doo Part Number | MT418-1112 |
| Functions | Single Phase AC Current Transducer |
| Supply Voltage | 24-300VDC or 40-276VAC |
| Nominal Measurement Range | 1,5,10 Amp |
| Maximum Measurement Range | 12 Amp |
| Alarm | N/A |
| Tariff Input | N/A |
| Accuracy | Class 0.5 |
| Battery Backup | N/A |
| Real Time Clock | 1min/month (30ppm) |
| Isolation | 3.5kV |
| Comms | USB (standard) RS232 2400-115200 b/s (Optional RS485) |
| Weight | 340g |
| Enclosure Material | UL94 |
| Factory Pack Qty | 1 |
| EU Directives |
EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30 |
| Safety |
Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 |
| Enclosure Material | PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 |
| Enclosure Protection | IP20
|
| Shock Withstand | 300g 8ms Pulse . 6 Shocks in each of 3 axes |
| Vibration Withstand | 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes |
| Operating Temperature | -20 → 70 °C |
