Home Voltage Testers Digital Voltage Testers
Product Details
  • CAT IV 600V and CAT III 1000V
  • IP64 waterproof housing
  • AC & DC Voltage detection from 6V to 690V AC/DC
  • Phase Rotation
  • 2000 Count LCD display
  • Low Impedance test

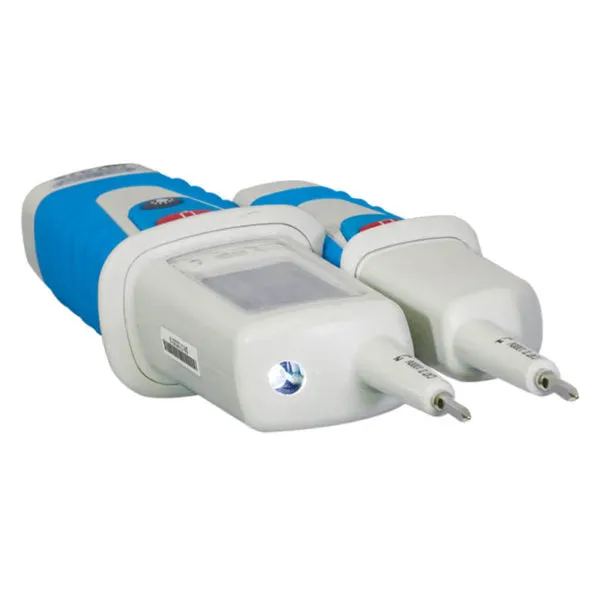

  • Built-in Flashlight
  • Polarity Detection
  • Rotary Field indication
  • Continuity test to 200kΩ

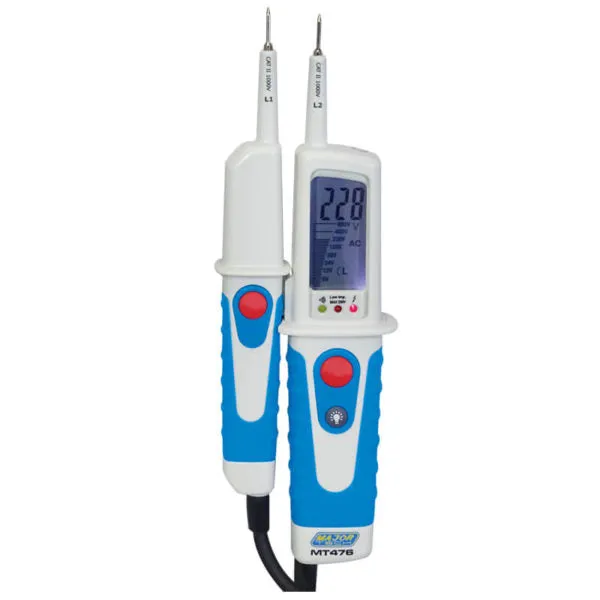

The MT476 is IP64 and is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200kΩ. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.

Specifications

Function Range Resolution Accuracy
DC Voltage 6 – 690V 1V ±(1.0% 3 Digits)
AC Voltage 6 – 690V 1V ±(1.5% 5 Digits)
Rotary Field 100 – 400V
RCD Test 10mA/30mA
Continuity Yes
AC Bandwidth 50Hz – 60Hz
Digital Display 2000 count
Bargraph Yes
Polarity Indication Yes
Overrange Indication Yes
Low Input Impedance <6kΩ
Flashlight Yes
Load Test with Vibration Load Test with Vibration
Enclosure Double injection IP64
Low Battery Indication Yes
Batteries 2 x AAA
Weight 255g
Dimensions 240 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V



Safety Ratings



Includes:

  • Test probe covers for CAT IV 600V

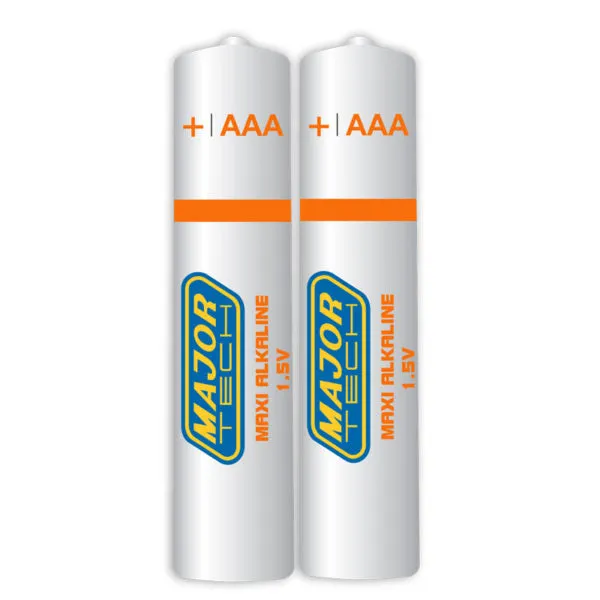

  • 2 x AAA Batteries
  • Instruction Manual

Downloads


Major Tech MT476 690V AC/DC IP64 Voltage Tester
  • DefaultTitle

$ 81.54

$ 62.72
