- CAT IV 600V and CAT III 1000V
- IP64 waterproof housing
- AC & DC Voltage detection from 12V to 690V AC and DC
- Phase Rotation
- LED display
- Single pole phase test set
- Low Impedance test

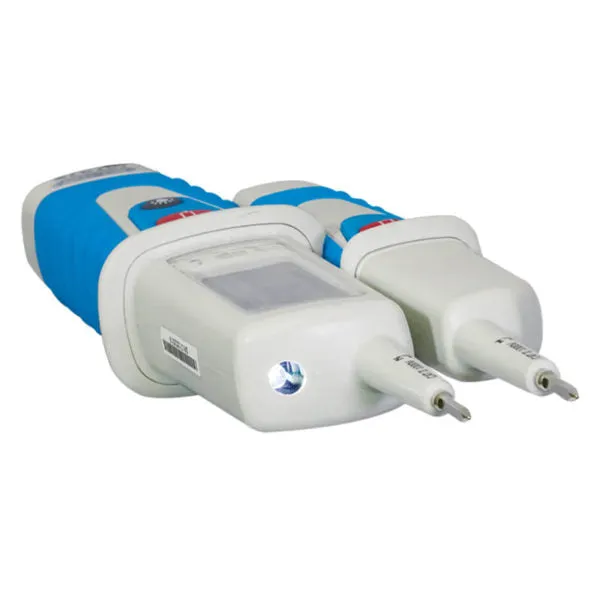

- Built-in Flashlight
- Polarity Detection
- Rotary Field indication
- Continuity test to 200kΩ

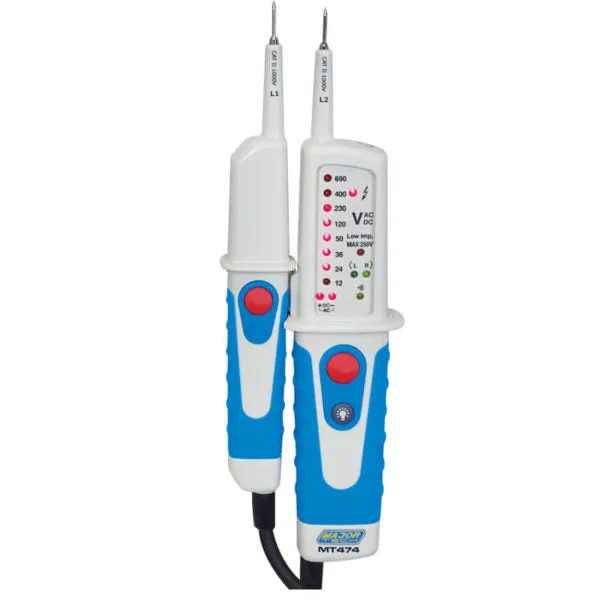

The MT474 is IP64 and is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT474 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems, with the direction of field shown as L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200kΩ. The MT474 meets the CAT IV 600V and CAT III 1000V safety standards.
Specifications
Function | Range | Accuracy |
DC Voltage | 12 – 690V | ±(30%) |
AC Voltage | 12 – 690V | ±(30%) |
Rotary Field | 100 – 690V AC | |
RCD Test | 10mA/30mA | |
Continuity | Yes | |
AC Bandwidth | 50Hz – 60Hz | |
Digital Display | LED Indication | |
Polarity Indication | Yes | |
Overrange Indication | Yes | |
Low Input Impedance | <200kΩ | |
Flashlight | Yes | |
Enclosure | Double injection IP64 | |
Batteries | 2 x AAA | |
Weight | 255g | |
Dimensions | 240 x 78 x 40mm | |
Safety Specs | IEC61010-1 CAT IV 600V |
Safety Ratings
Includes:
- Test probe covers for CAT IV 600V

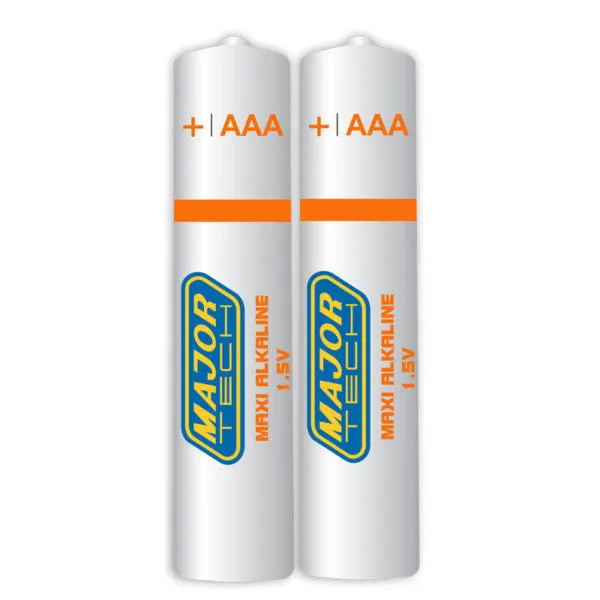

- 2 x AAA Batteries
- Instruction Manual
