Product Details
  • CAT IV 600V and CAT III 1000V
  • IP64 waterproof housing
  • AC & DC Voltage detection from 12V to 690V AC and DC
  • LED Indication
  • Low Impedance test
  • Built-in Flashlight
  • Polarity Detection
  • Voltage function operates without battery
  • Continuity test to 200kΩ

The MT472 is IP64 and is a basic voltage tester designed to meet electrician’s requirements for the measurement of AC and DC voltage and continuity. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT472 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts, and continuity measurements up to 200kΩ. The MT472 meets the CAT IV 600V and CAT III 1000V safety standards.

Specifications

Function Range Accuracy
DC Voltage 12 – 690V ±(30%)
AC Voltage 12 – 690V ±(30%)
RCD Test 10mA and 30mA
Continuity Yes
AC Bandwidth 50Hz – 60Hz
Digital Display LED Indication
Polarity Indication Yes
Low Input Impedance ≤6kΩ
Flashlight Yes
Enclosure Double injection IP64
Weight 237g
Dimensions 240 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V



Safety Ratings



Includes:

  • Test probe covers for CAT IV 600V
  • Instruction Manual

Downloads

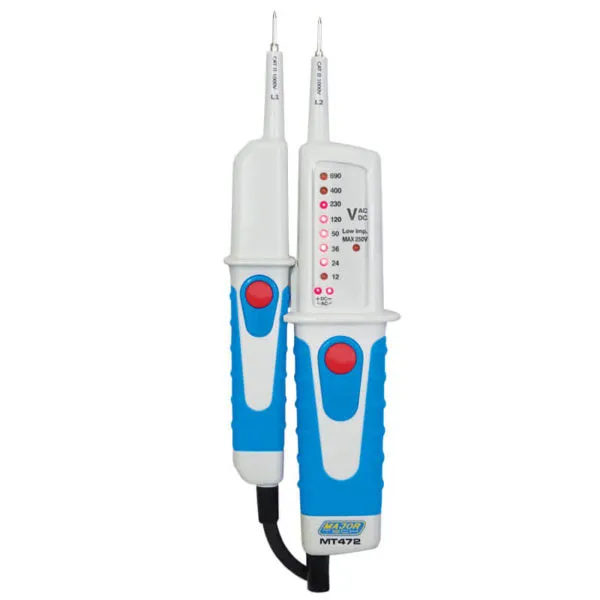

Major Tech MT472 690V AC/DC IP64 Voltage Tester
