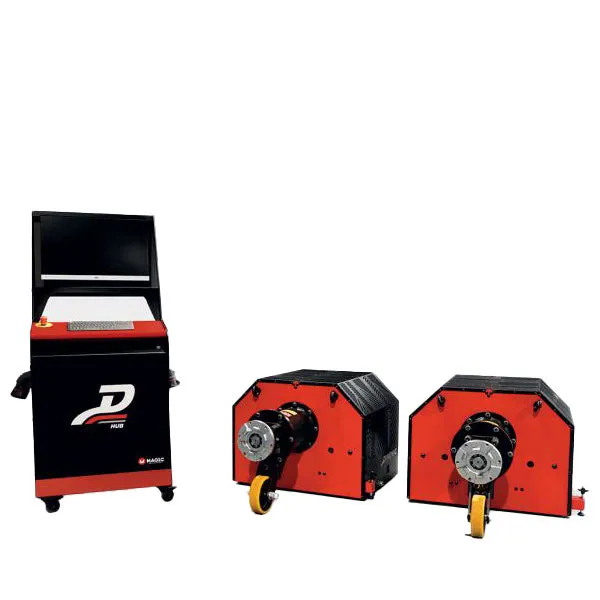

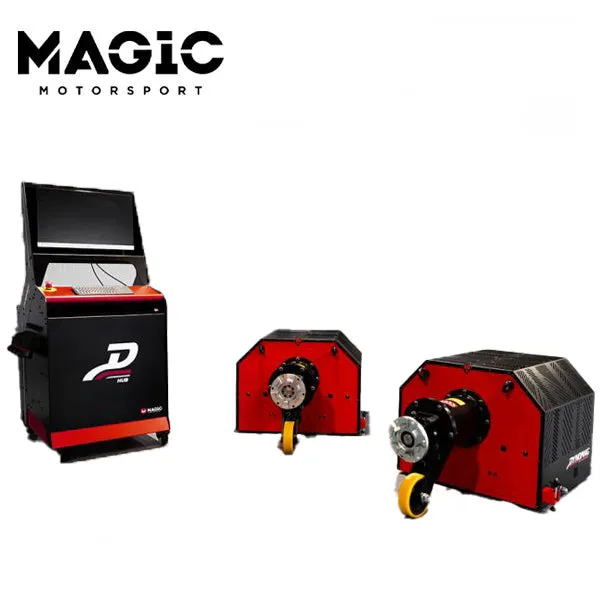

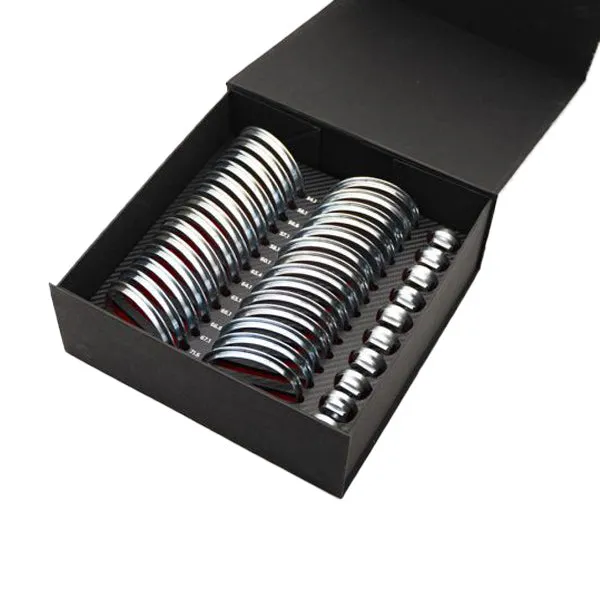

The meticulous combination of electronic, technical, and structural components has been perfected to provide mechatronic workshops with a hub that is made to last over time. The movement system, with Teflon wheels, makes it handy and easy to place in any environment. Its jointed axle deserves to be mentioned: it ensures perfectly stable couplings. The 4WD configuration is composed of 4 hubs and a control totem. Dynomag Hub couples the vehicle directly to the car hub. Forget stands, ramps, and restraint devices, in an efficient and risk-free system that produces accurate and replicable results in just 15 minutes, after a fast and intuitive set-up.
Main Features:
- Small Size - It can be installed in any workshop. In addition to taking up very little space, it only takes one single person to move the components of the bench, which can be stored after its use.
- Precise and Repeatable Measurements - The direct coupling with the wheel hub increases the precision and repeatability of each test. The absence of rollers and wheels - that can as variables - optimizes the calibration and improves the quality of the results.

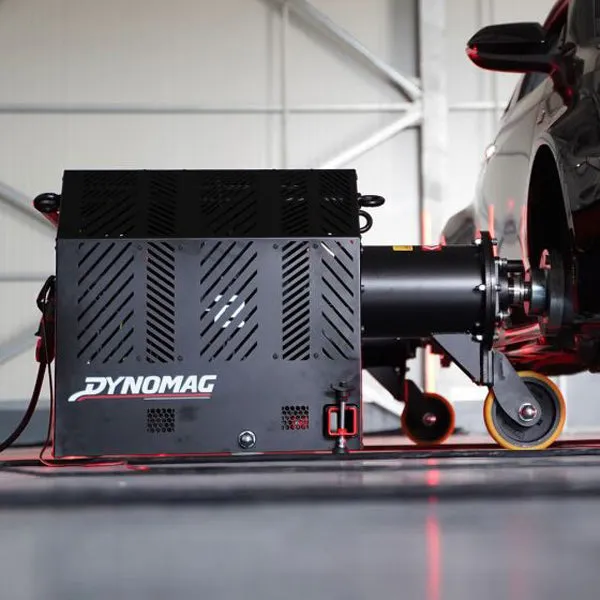

- High Levels of Safety During Tests - The hubs are connected directly to the vehicle, thus eliminating the risk of uncoupling, losing tire parts or throwing lead wheel weights.
- Made in Italy - Dynomag Hub is fully designed, engineered, tested, and assembled in Italy, drawing on the knowledge of Magicmotorsport's team of experts.
- Red Dot Product Design Winner 2024
General Specifications:
| Denomination | Hub Dynometer for vehicles |
| Model | Dynomag Hub |
| General Power supply Voltage | Three-phase: 400 Vac |
| General supply frequency | 50Hz |
| Level of sound pressure in the workspace | < 70 dB(A) |
| Temperature in the workspace | 0 ; 40°C |
| Max. humidity in the workspace | 85% |
| Possible transmissions | Manual, Automatic, CVT (lock mode) |
| Hub Max Size | 1300 x 950 x 750 mm |
Totem Specifications:
| Operating voltage | Three-phase: 400 Vac |
| Max. absorbed power | [A] |
| Load Type | Inductive |
| Power output | Three-phase: 5 x 400 Vac Single-phase: 4 x 240 Vac |
| Max. output power | Individual three-phase (5 outputs): 20 / Total single-phase: 16 |
| Safety systems | Differential circuit breaker: Three-phase: 20 A curve C, IΔN = 0.03A Type A individual for each output. Single-phase: 16 A curve C, IΔN = 0.03A Type AC overall |
| Totem Max. Size | 720 x 950 x 920 mm |
4WD Configurations:
| Electric Current | 64 A |
| Max. Braking Torque | 6400 Nm (4720.398 ft-lb) |
| max. Braking power | 1600 / 2000CV/rpm of the axle |
| max. axle load | 3000 kg (6613.868 lbs) |
| Camber angles | /- 8° |
