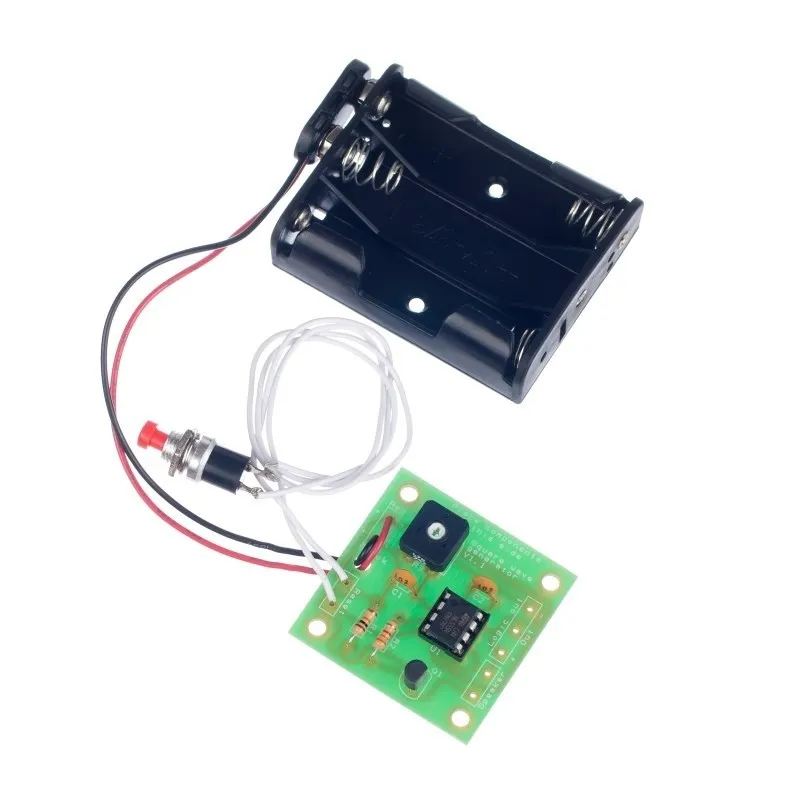

This kit is perfect for GCSE students needing to use a 555 timer in its astable mode, where it produces a square wave output. The frequency of which is adjustable via the variable resistor. The board has a choice of two outputs. The logic output can be used to drive another IC or a speaker can be connected so the tone is heard (e.g. a door bell).

The push button switch connects to the reset line such that the IC is only active when the button is pressed.



Features:

  • The 555 Timer Astable (Tone Generator) Kit produces a square wave output.
  • The frequency of the aquare wave is adjustable via the variable resistor.



Contents:

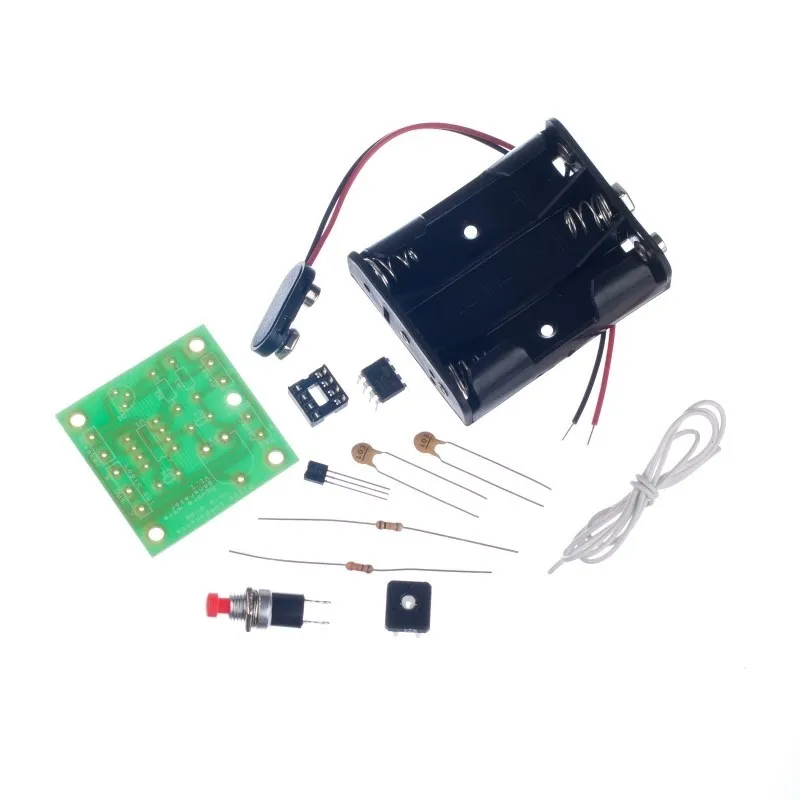

  • 1 x 555 Timer IC.
  • 1 x 8 Pin IC Holder.
  • 1 x 3.3KΩ Resistor.
  • 1 x 10KΩ Resistor.
  • 1 x 47KΩ Potentiometer.
  • 2 x 10nF Ceramic Capacitors.
  • 1 x BC547 NPN Transistor.
  • 1 x Push To Make Switch.
  • 1 x PP3 Clip Lead.
  • 1 x 3AA Battery Holder.
  • 0.5m Connecting Wire
  • 1 x Tone Generator PCB



Dimensions:

  • PCB Length: 40mm.
  • PCB Width: 40mm.



Requires:

  • 3 x AA Batteries.
  • .
  • .
  • .
  • .



Resources:

  • .
  • .



Note:

  • This kit requires soldering.
  • Requires x 3 x AA Batteries. and depending upon desired use a , both available separately.
Kitronik 555 Timer Astable (Tone Generator) Kit
