Product Details
＋
Greenlee CM-1360-C Includes
- (2) 1.5V AA batteries
- Test leads
- Carrying case
Greenlee CM-1360-C Features

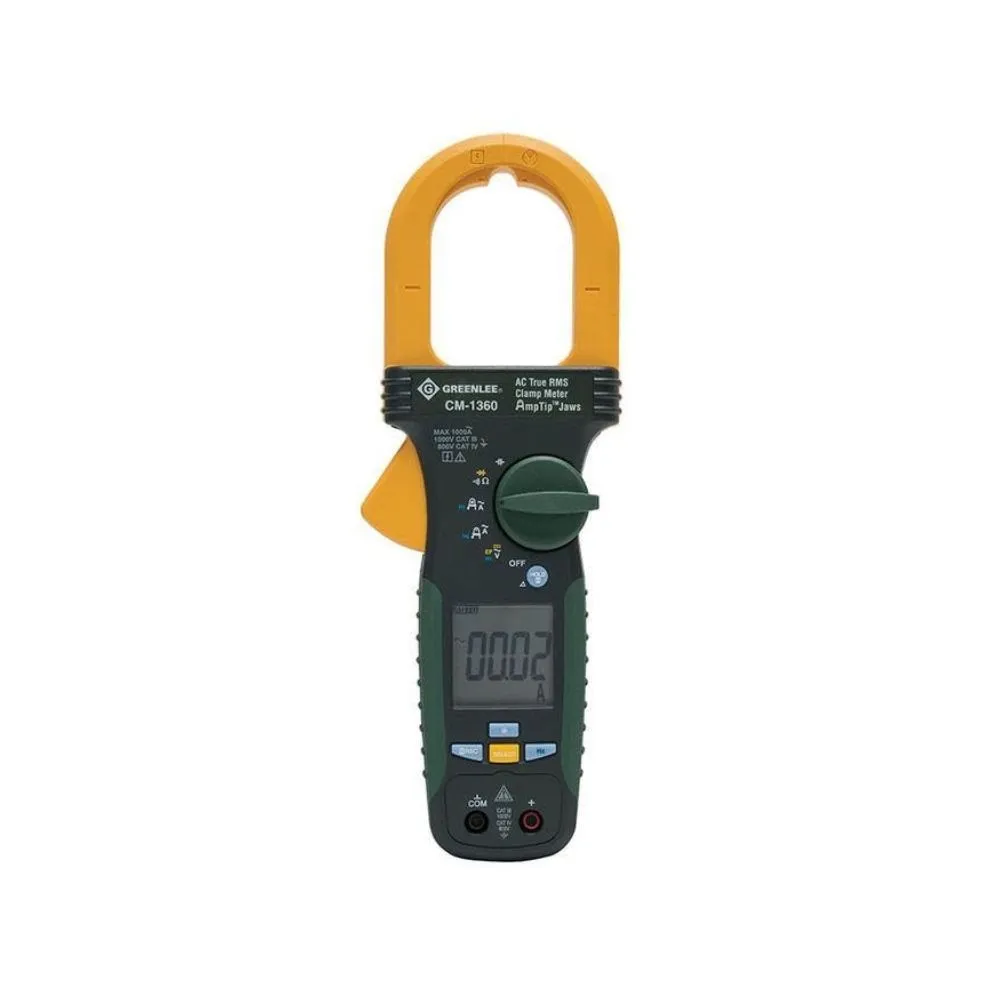

- CM-1360 Clamp meter with Certificate of Calibration
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum, and Average readings
- Lifetime warranty
Greenlee CM-1360-C Specifications
| Amperage Measurement | 60, 600, 1000 Amps AC |
| Display | LCD, 6000 Count |
| Frequency Rating | Voltage |
| Jaw Opening | 2.0" (51 mm) |
| Measurement Category | CAT III 1000V, CAT IV 600V |
| Replacement Part | TSG-3 test leads, TC-30 carrying case |
| Resistance Measurement | 600, 6k, 60k Ohms |
| Standard | CAT IV, C/US UL Listed, CE |
| True Power | AC True RMS |
| Voltage Measurement | 600, 1000 Volts AC/DC |
