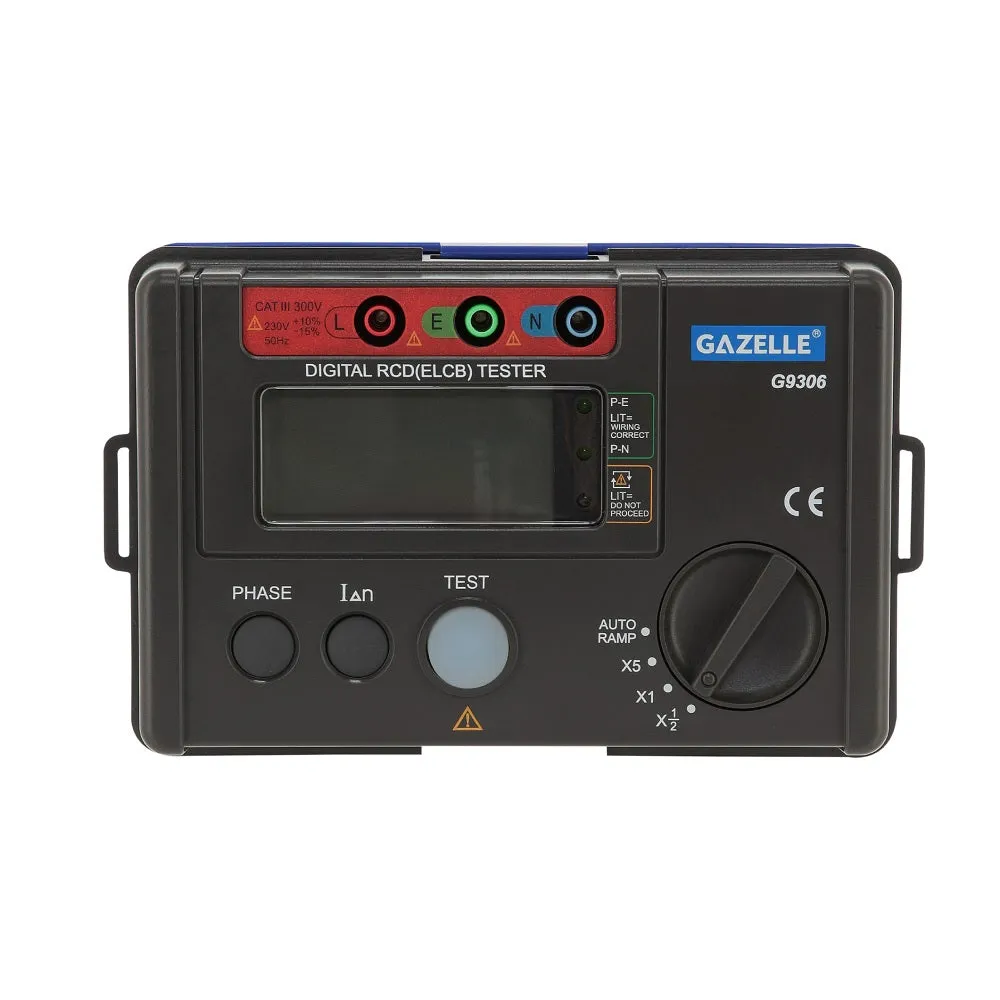

Gazelle G9306, RCD-ELCB Tester

G9306 is a 1000-count digital RCD (ELCB) tester with phase switch, connections check, AUTO RAMP, disconnect buzzer, over-range display and more. It meets IEC61557 standard. Lock measurement 1000-count LCD display of all measurement indicators Lead sequence check with 3 LED indication lights Phase angle selection (0°and 180°), can detect the fastest trigger time AUTO RAMP measurement, trip current and time real-time display Fuse protection; data hold, over range indication, double insulation Measurement – X 1/2: 10mA/20mA/30mA/100mA/300mA/500mA 1000ms | Measurement – X 1: 10mA/20mA/30mA/100mA/300mA/ 500mA 1000ms / 300ms | Measurement – X 5: 10mA/20mA/30mA 1000ms |AUTO RAMP: 10mA/20mA/30mA/100mA/300mA/500mA 300ms | Trip Current Accuracy: ±10 | Trip Time Accuracy: ±(0.6% 4) |Trip Time Resolution: 1ms | Operational Voltage (Freq.): 195V~253V (50Hz)
