Product Details
＋
(item no. 2730933)

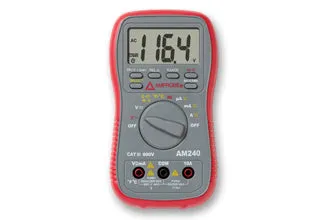

Amprobe AM-240 Digital Multimeter, packs a full set of features into a small package. A large backlit LCD display makes readings of up to 600V AC/DC easy to view. This manual and autoranging multimeter takes many measurements with AC/DC voltage up to 600V, AC/DC current up to 10A, temperature, resistance, capacitance, frequency, duty cycle and microamps.
Features
- AC/DC Voltage up to 600 V, AC/DC current up to 10A, temperature, resistance, capacitance, frequency, duty cycle
- AC/DC microamps for sensors diagnosis
- Large backlight LCD Display
- Diode test
- Audible continuity test
- Data hold
- Max, min and relative measurements
- Auto and manual ranging
- Auto power off (can be disabled)
- Tilt stand
Specifications
| FEATURE | AM-220 | AM-240 |
| AC Voltage | 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V | |
| DC Voltage | 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V | |
| AC/DC Current | 400.0 µA, 4000 µA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A | |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO | |
| Capacitance | 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF | |
| Frequency | 10.00 Hz, 100.0 Hz, 1000 Hz, 10.00 kHz, 100.0 kHz, 1000 kHz, 10 MHz | |
| Continuity | • | |
| Duty cycle | 0.1 % - 99.9 % | |
| Temperature | – | -50 °C → 750 °C (-58 °F → 1382 °F) |
| Specifications | |
| AC/DC Voltage: | 400mV 4.000/40.00/400.0/600 V |
| AC/DC Current: | 400/4000µA 40/400 mA 4/10 A |
| Resistance: | 400.0 Ohms 4.000/40.00/400.0 kOhms 4.000MOhms/40.00 MOhms |
| Capacitance: | 40.00/400.0 nF 4.000/40.00/400.0/4000µF |
| Frequency: | 10.00/ 100.0/1000 Hz 10.00/100.0/1000 kHz 10M Hz |
| Duty cycle: | 0.1%-99.9% |
| Temperature: | -58° to 1382°F (-50° to 750°C) |
