Product Details
＋
Fluke 2096322 Description

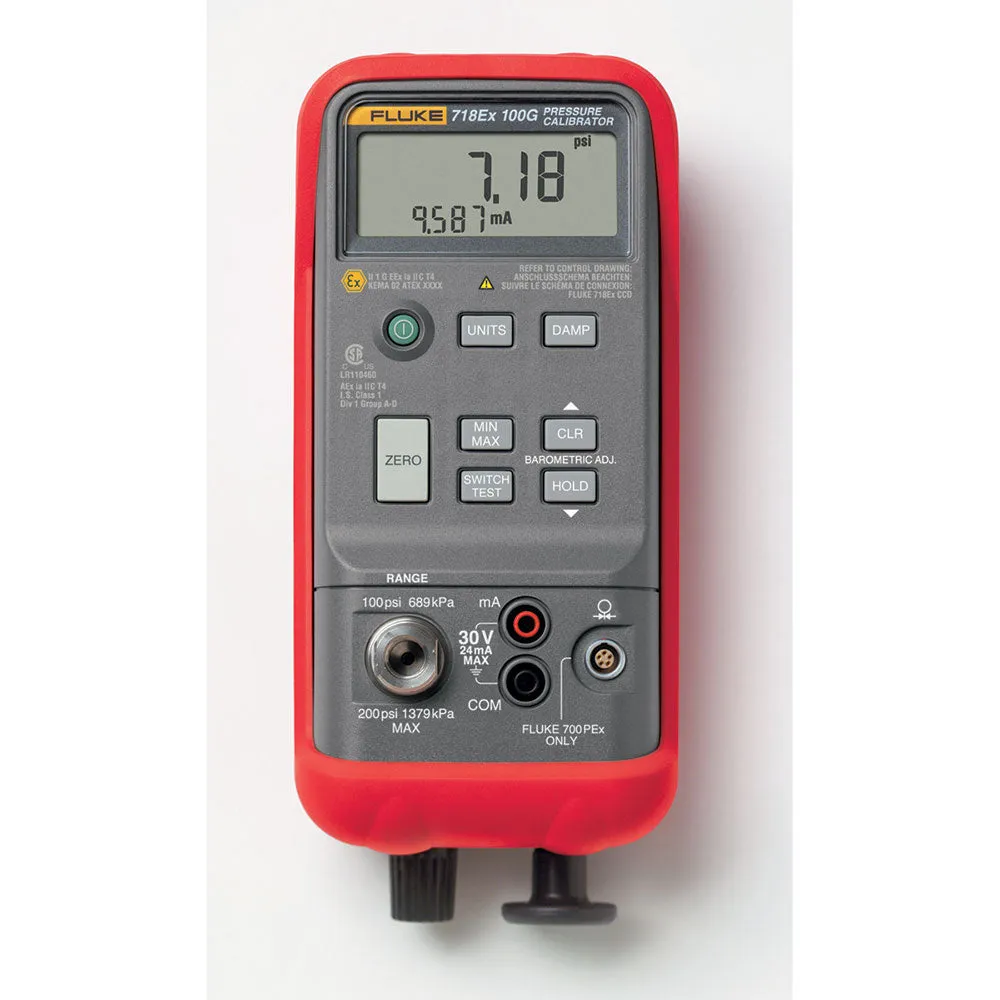

Pump Up the Pressure. The new Fluke 718Ex Intrinsically Safe Pressure Calibrator is a new, powerful, intrinsically safe, self-contained pressure calibrator for usage in Explosion endangered areas.
Fluke 2096322 Includes
- (1) I.S. Pressure Calibrator 100 Psig
Fluke 2096322 Features
- ATEX II 1G Ex ia IIC T4 compliant
- Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve
- 30, 100, and 300 psi ranges (2, 7, and 20 bar)

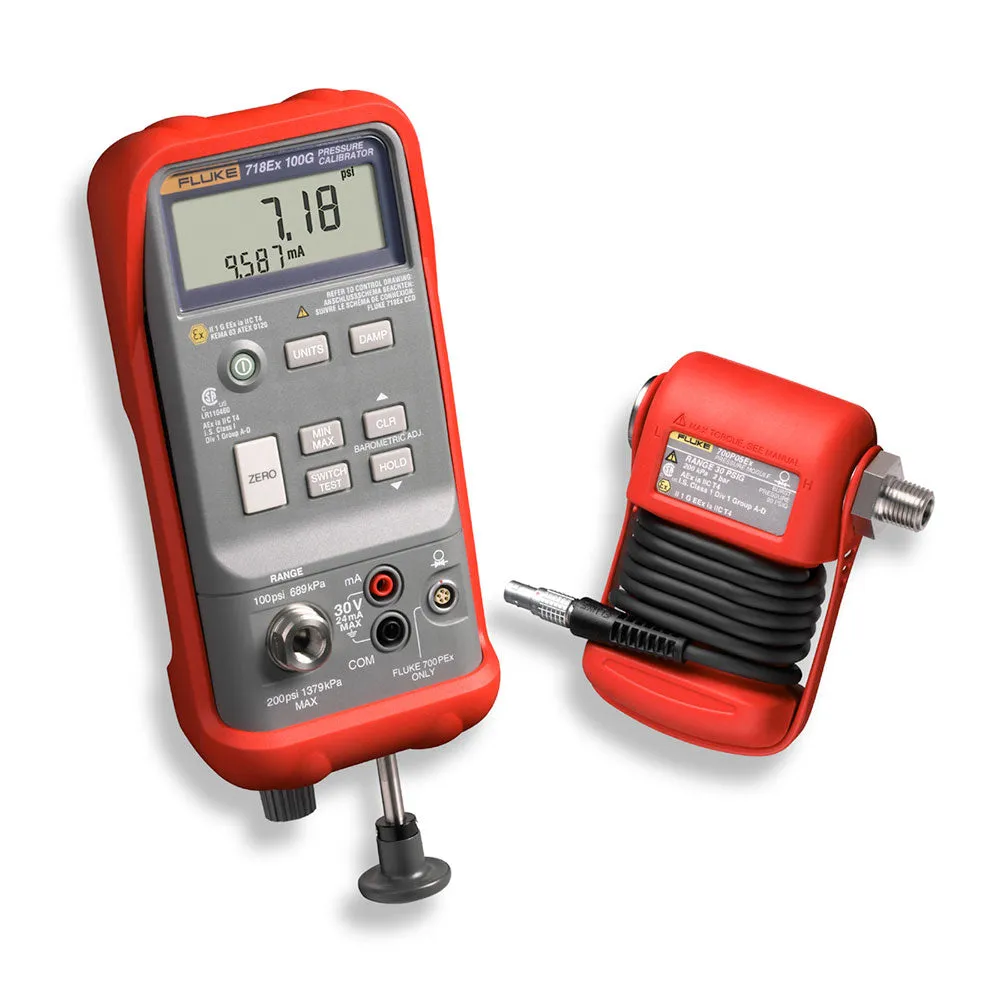

- Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules
- Wide range of selectable measurement units for pressure
- Current measurement with 0.02% accuracy and 0.001 mA resolution
- Pressure switch test function
- MIN/MAX Hold functions
Fluke 2096322 Specifications
| Unit Weight (KG) | 1.34 |
| Unit Height (CM) | 8.6 |
| Unit Length (CM) | 25.5 |
| Unit Width (CM) | 20 |
