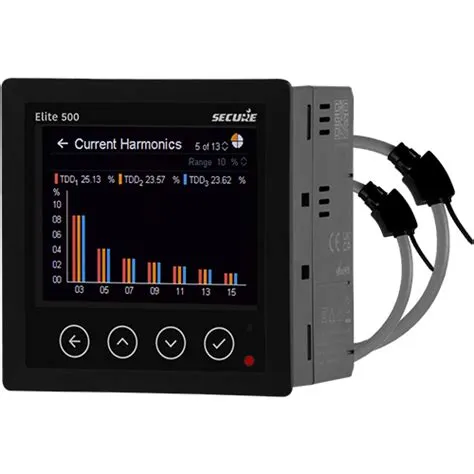

Secure E500R-51D2, Panel Mount Network Recorder & 1000A/140mm Rogowski Coils, with Harmonics (15th), Class 0.5S, 50..500VAC 50/60Hz, RS485 Modbus RTU, 35..300V DC/85..300VAC Aux, 16MB Logging Memory, TFT Touch Screen Aux, 16MB Dual Logger , TFT Touch Screen, 10 Years Warranty
- Automatic range of nominal current up to 6 A (Includes 5A/1A CT Input) and nominal voltage up to 500 V L-L, 300V L-N
- Dual Loggers, configurable for Instant or accumulated energy
- RMS values of currents and voltages
- Measurements of active, reactive, apparent power and power factor
- Measurements of energy in all 4 quadrants Average values of measurands per interval
- RS 485 communication up to 38400 bit/s as standard
- Optional Protocol Modules Modbus TCP, BACNet IP, Profinet, SCADA EC61850
- Optional Modules for Analogue outputs and Relay Alarms
The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.
Features :
- Measurement of instantaneous values and accumulated energy. Includes Harmonics to the 15th
-
Accuracy class 0.5S
- Dual Internal Loggers
- Measurement of 20 minimal and maximal values in different time periods
- RS 232/RS 485 communication up to 38400 bit/s
- MODBUS communication protocol
- Optional Protocol Modules Modbus TCP, BACNet IP, Profinet, SCADA EC61850
- Configurable 2 x Tariff Inputs or 2 x Pulse Outputs, or Alarm Outputs
- Universal or AC/DC power supply

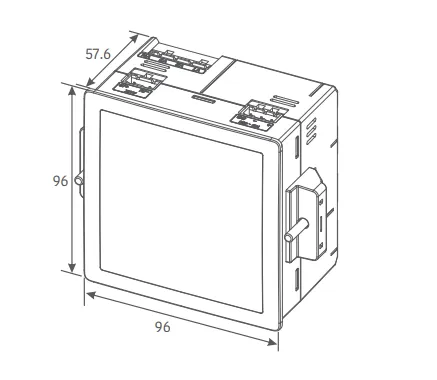

- Graphic Colour TFT 320 x 240 pixels (53x70mm)
- Automatic range of nominal current up to 6 A and nominal voltage up to 500 V
- Multilingual support
- User-friendly Free ECon Configuration software
Specification
| Secure Part Number | E500R-51D2 |
| Functions | Power Quality Meter, Energy Meter |

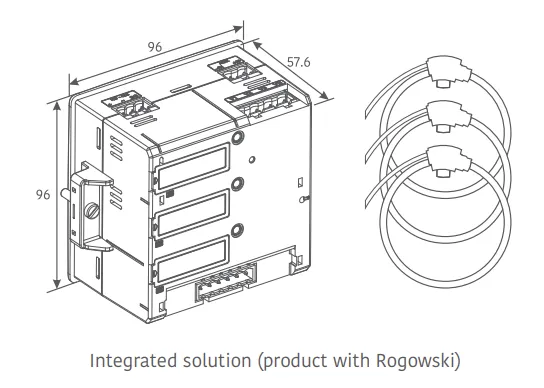

| Rogowski Coil Rating/Size | 1000A/140mm |
| Supply Voltage | Universal 35..300V DC, 85..300VAC |
| Nominal Measurement Range | 240V L-N, 100mV/kA @ 50 Hz, 415V L-L |
| Maximum Measurement Range | 300V L-N, 100mV/kA @ 50 Hz, 500V L-L |
| Alarm | Optional Module 2 Relay/Pulse Outputs |
| Tariff/Digital Inputs | TOU Tarriff Clock |
| Accuracy | Class 0.5S (I,U,F,PF,θ,THD) Class 1(Active), Class 2 (Reactive) |
| Analogue Output | Optional Module 2 x Programmable Analogue Outputs |
| Internal Memory | 2 x 8MB |
| Battery Backup | N/A |
| Real Time Clock | 1min/month (30ppm) |
| Isolation | 3.5kV |
| RS232/RS485 | N/A Optional |
| CT Termination | Ring Terminals |
| Weight | 600g |
| Certification | CE, CSA, ROHS |
| Warranty | 10 Years from dispatch from Secure Warehouse |
| Factory Pack Qty | 1 |
| EU Directives |
Degree on electrical equipment designed for use within certain voltage limits URLRS 53/00 (Directive 73/23/EEC on low voltage): SIST EN 61010-1:2002 Safety Requirement for electrical equipment for measurement, control and laboratory use, part1 : general requirement Decree on electromagnetic Compatibility (EMC) URLRS 61/00 (Directive 89/336/EEC on electromagnetic compatibility): SIST EN 61036 item 4.5: 1998 Meters for active energy (class 1 and 2) |
| Safety |
Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 |
| Enclosure Material | PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 |
| Enclosure Protection | IP52 (IP00 for terminals) in compliance with SIST EN 60529:1997
|
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) (88 970 250 or 88 970 270) 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 → 70 °C |
Datasheet
Cross Reference
The Following meters are close equivalents to Elite 500 Series. For further details please contact
|
Elite 500_400_300_100 series competition replacement for |
||||
|
Schneider |
Siemens |
Accuenergy (RS485 DNP3 default) |
Socomec |
Selec |
|
PM 5000 series |
PAC 2000 series |
ACCUVIM-CL DNP3.0 |
DIRIS A-20 |
Selec MFM376 |
|
PM 5100 |
PAC 3200 |
ACCUVIM-CL DNP3.0 |
DIRIS A-20 |
MFM384, CL-1, RS485 |
|
PM 5300 |
|
ACCUVIM-IIR |
DIRIS A-20 |
MFM383A |
|
PM 5500 |
PAC 4200 |
ACCUVIM-IIR( BACnet) |
DIRIS A-20 |
MFM384. RS485 |
|
PM 6463 |
Siemens 7KMPAC4200 |
ACCUVIM-IIR ( Profibus) |
DIRIS A-30/ DIRIS - A60 (PQ Feature) |
MFM384-C-CE-CL05, RS485 |
|
PM 5650 |
|
ACCUVIM-IIR ( IEC 61850) |
DIRIS A-30 Profibus |
MFM384-C-CE-CL05, RS485 |
|
PM 5760 |
|
ACCUVIM-EL |
DIRIS A-30 Ethernet |
MFM384-C-CE-CL05, RS485 |
|
PM5330 |
|
ACCUVIM-EL ( BACnet) |
DIRIS A-30/ DIRIS A-60 |
|
|
PM 5560 |
|
ACCUVIM-EL ( Profibus) |
DIRIS A-30/ DIRIS A-60 |
|
|
DM6200H |
|
ACCUVIM-EL ( IEC 61850) |
|
|
|
PM2220 |
|
ACCUVIM-II R Ethernet |
|
|
|
PM2230 / DM2120 (LED) |
|
|
|
|
|
PM 5350 |
|
|
|
|
