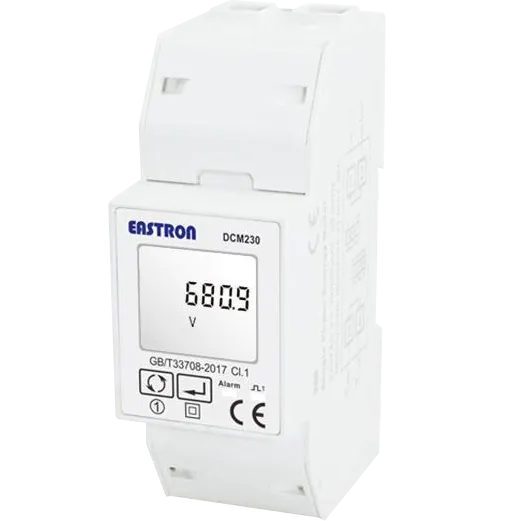

Eastron Europe DCM230 1-2-1-1 V2, DIN Rail Mount DC kWh Meter, 1000VDC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved

  • 45/60/75mV Shunt Connect
  • RS 485 communication up to 38,400 bit/s as standard
  • 1 x Pulse Outputs (1 Configurable)
  • Bidirectional Measurement



The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records DC Current and Voltage (DC Power) value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, energy, power) from the measured signals.



Features :

  • Accuracy class 1

  • Measurement of Active and Reactive Power
  • Modbus RTU communication up to 38,400 bit/s communication
  • Pulse output as standard
  • Graphic LCD with illumination
    Specification
    Eastron Europe Part Number DCM230 1-2-1-1 V2
    Functions DC Energy Meter
    Supply Voltage 9-60VDC

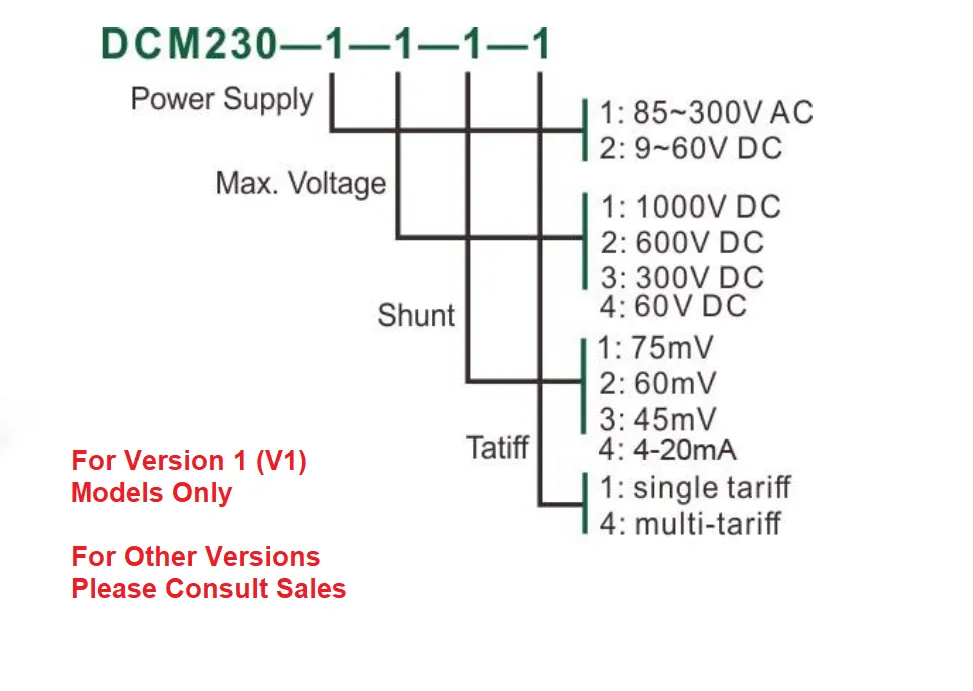

    Nominal Measurement Range 5-300VDC,5-600VDC,5-1000VDC (See version 1
    Maximum Measurement Range 5-1000VDC
    Nominal Current Input Shunt up to 2000Amp See our for Suitable Shunt
    Pulse Output 1 x Configurable 60/100/200ms
    Tariff Input N/A
    Accuracy Class 1 (I,U,kW,kWh)
    Mounting Din Rail
    Real Time Clock 1min/month (30ppm)
    Internal Memory N/A
    Dimensions 36mm x 100mm x 66mm (2 modules wide)
    Isolation 4kV
    RS485 2400-38400 b/s
    Weight 250g
    Certification EN 61010-1 Installation Category III
    Factory Pack Qty 1
    Safety IP51(Indoor)
    Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
    Enclosure Size

    DIN 42880 4 Modules

    Operating Temperature -20 → 70 °C



    Documents
    Modbus Utility

      DCM230 1-2-1-1 V2, DIN Rail Mount DC kWh Meter, 1000VDC, 9-60VDC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved
      • DefaultTitle

      $ 74.06

      $ 56.97
