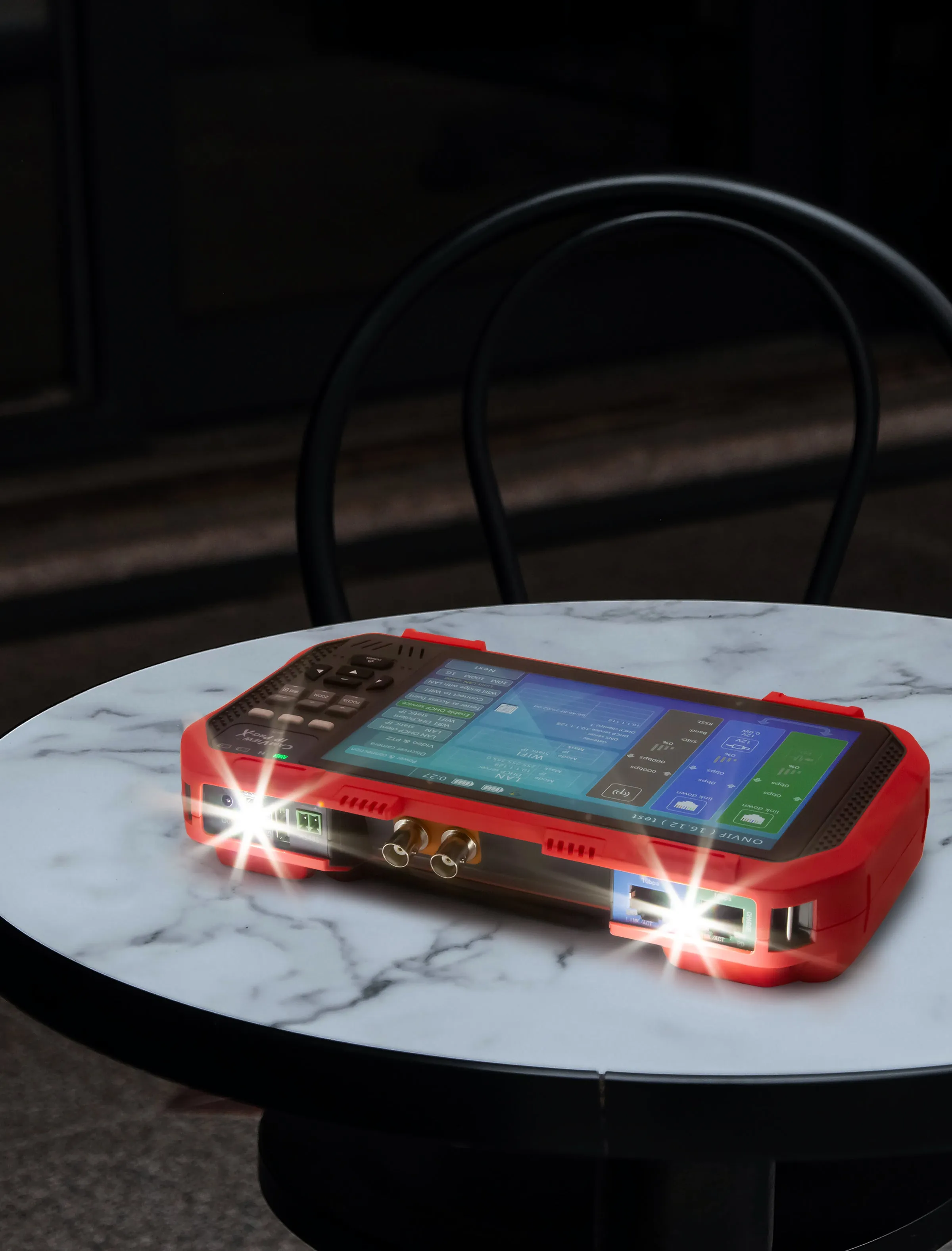

The CamView IP Pro-X is designed for installation and maintenance of analog SD, analog HD and network HD video surveillance systems. It will guide you through a step-by-step process to test the functionality of IP cameras, whether they are connected to an existing network or directly attached to Tester.
DESCRIPTION

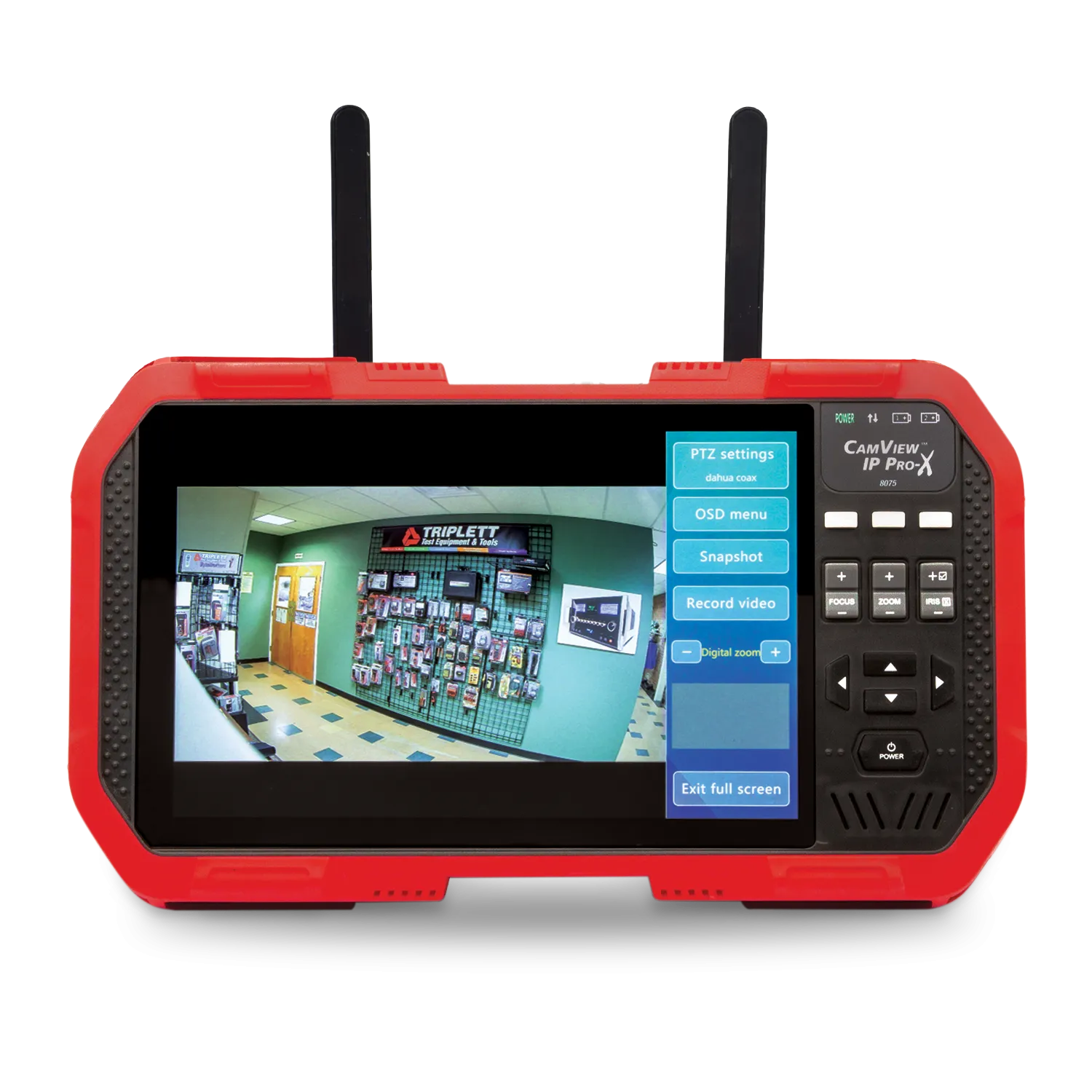

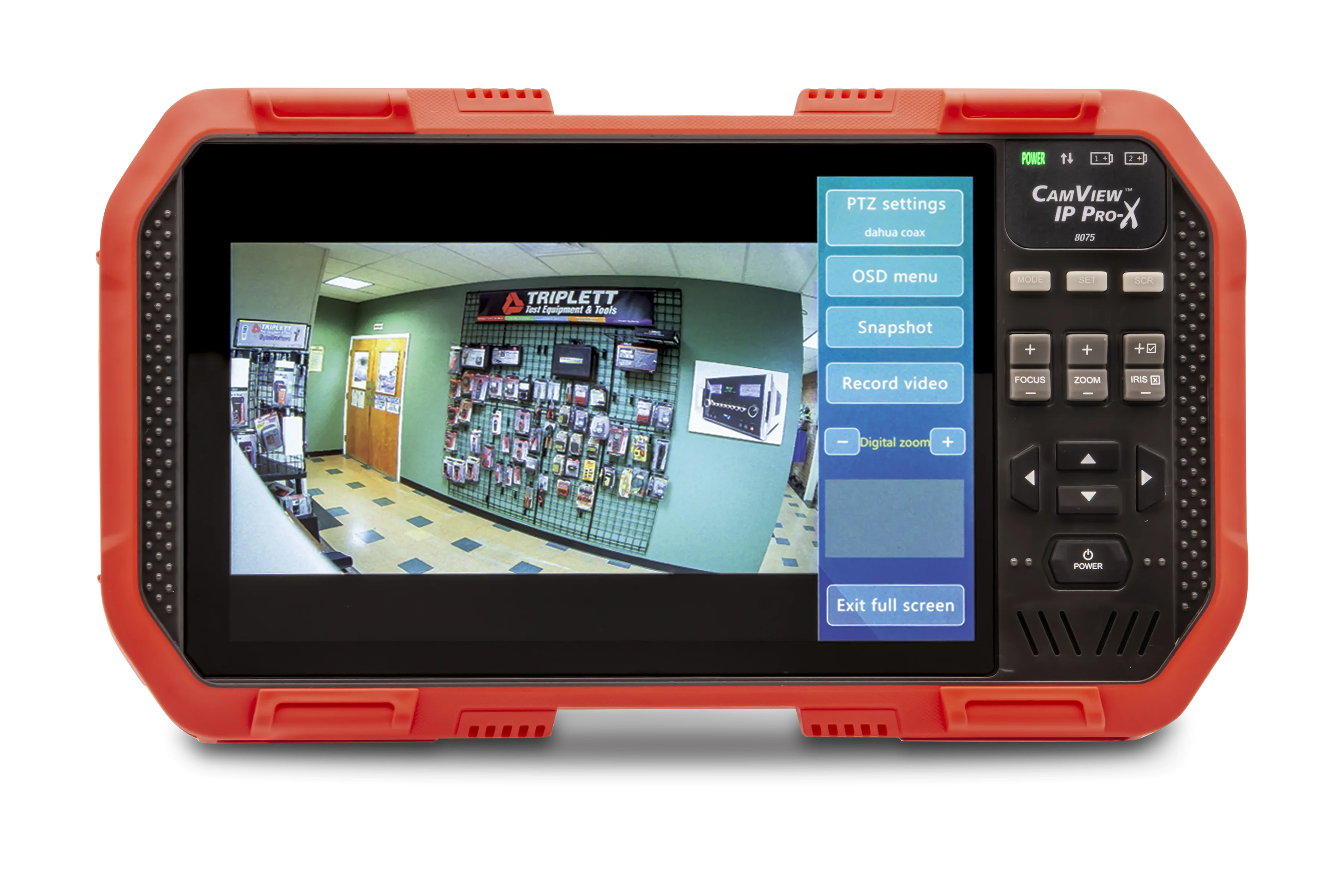

The CamView IP Pro-X is designed for the installation and maintenance of analog SD, analog HD and network HD video surveillance systems. It will guide you through a step-by-step process to test the functionality of IP cameras, whether they are connected to an existing network or directly attached to the Tester. You can adjust the camera’s settings, and record still images or video from the selected camera. You can also check the audio signal from the camera if it is equipped with a microphone. If the camera is directly connected, the Tester will provide POE voltage to power the camera. Comes complete with (2) Li-ion batteries, Universal AC adapter/charger with 4 plugs, Ethernet cable, BNC/BNC cable, microUSB to USB cable, RS485 cable with extra screw terminal, audio cable, 12V camera power cable, lanyard and carrying case.
CATEGORY:
Features
- Works with SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265 IP, NTCS/PAL, and all ONVIF enabled IP cameras

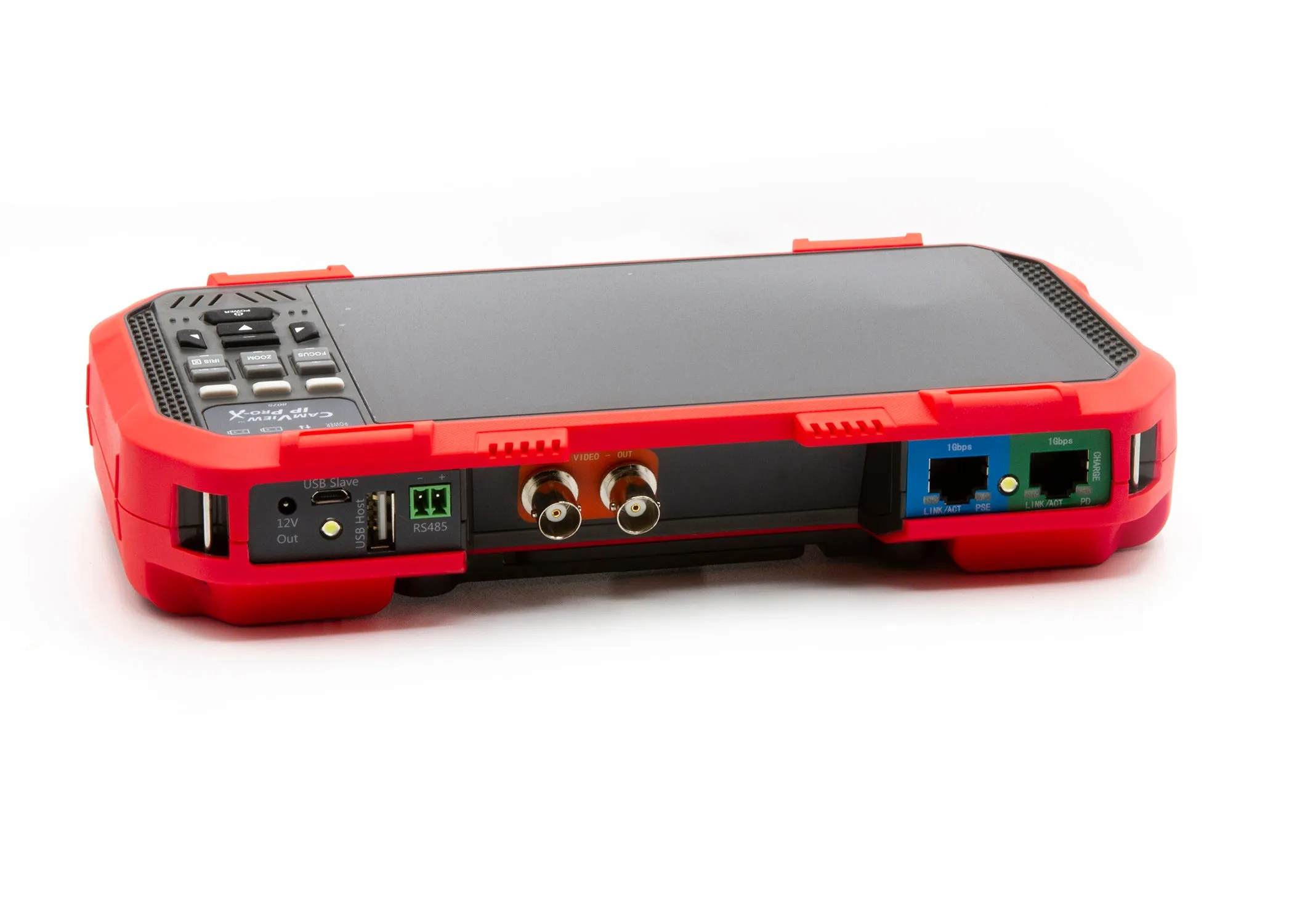

- USB, BNC, RJ45 and HDMI ports
- WiFi for connecting to WiFi cameras and to create a WiFi hotspot
- 25W PoE and 12VDC camera outputs
Product Overview
Specifications
| 8075 | |
| IPC Protocol | ONVIF, RTSP, RTP |
| Ethernet Test | 10/100M/1G detect; Loop detect; DHCP client & server; traffic detect; datalink quality detect |
| IPC Test | Discover the device, real time video, camera config, PTZ test, discover ONVIF device |

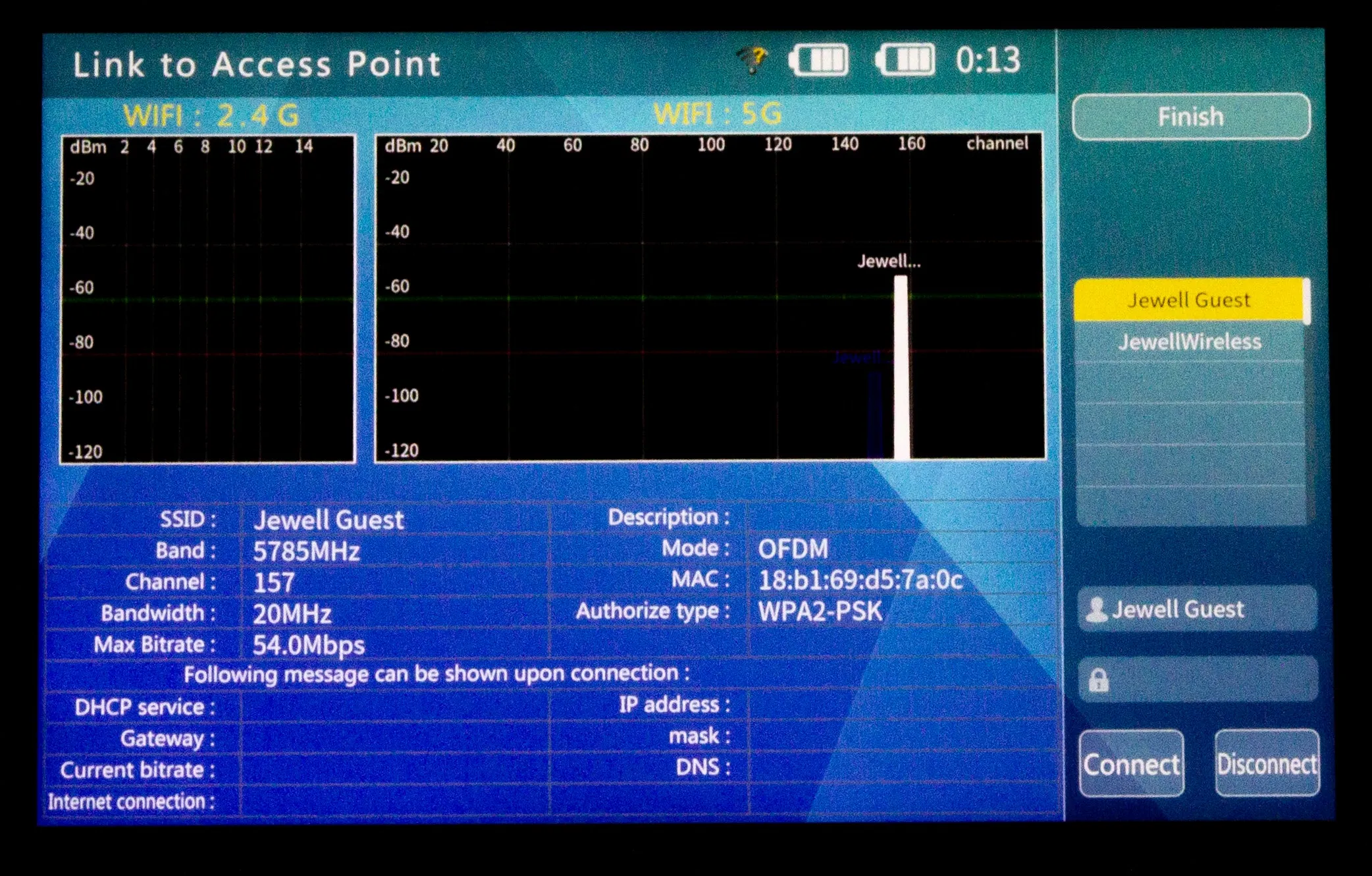

| WiFI Test | Support 2.4G & 5G; WiFi connection; WiFi list; Delay detection; packet loss rate test |
| Spectrum Test | Spatial frequency band signal scanning & detection; spatial noise signal detection |
| Poe Test power | PSE test -The tester supplies power (25W) / PD test-receives the power (802.3af/802.3at) |
| Analog Video Test | NTSC/PAL/HD-CVI 3.0/AHD 3.0/HD-TVI 3.0 |
| Video In/Out BNCs; supports 8 level digital zoom | |
| HDMI Signal Test | Can receive 720p, 1080p |
| Can transmit various test images 720p & 1080p | |
| 12V Power Output | 12V/2A output interface |

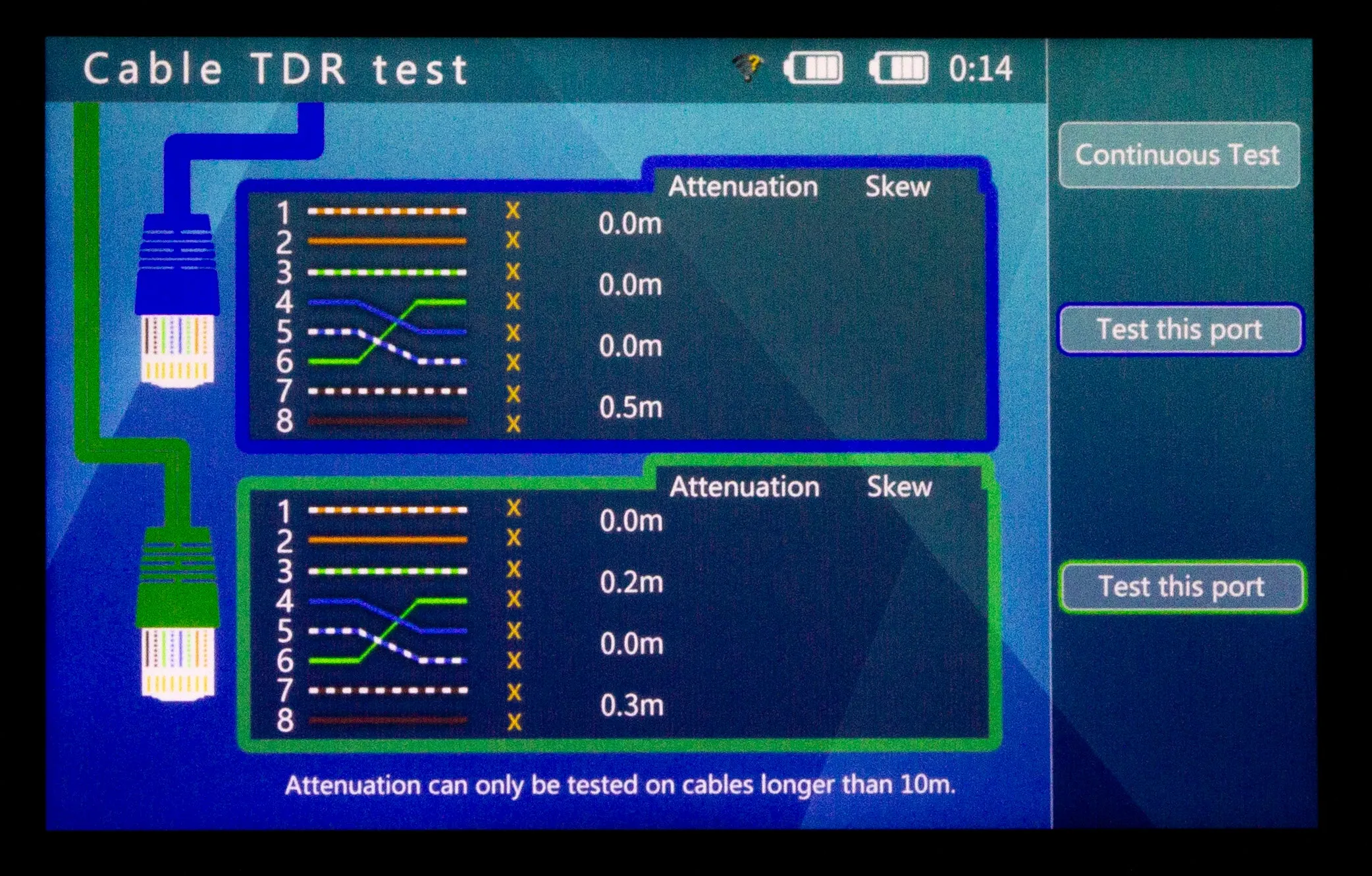

| TDR Test | Test network cable (4 pair) length; Max 427 to 656ft (130 to 200m); Accuracy 3.3ft (1m) |
| Coaxial PTZ Control Test | CVI protocol (Dahua); AHD protocol (Pelco c); TVI protocol (Hikvision) |
| 485 PTZ test | More than 30 protocols |

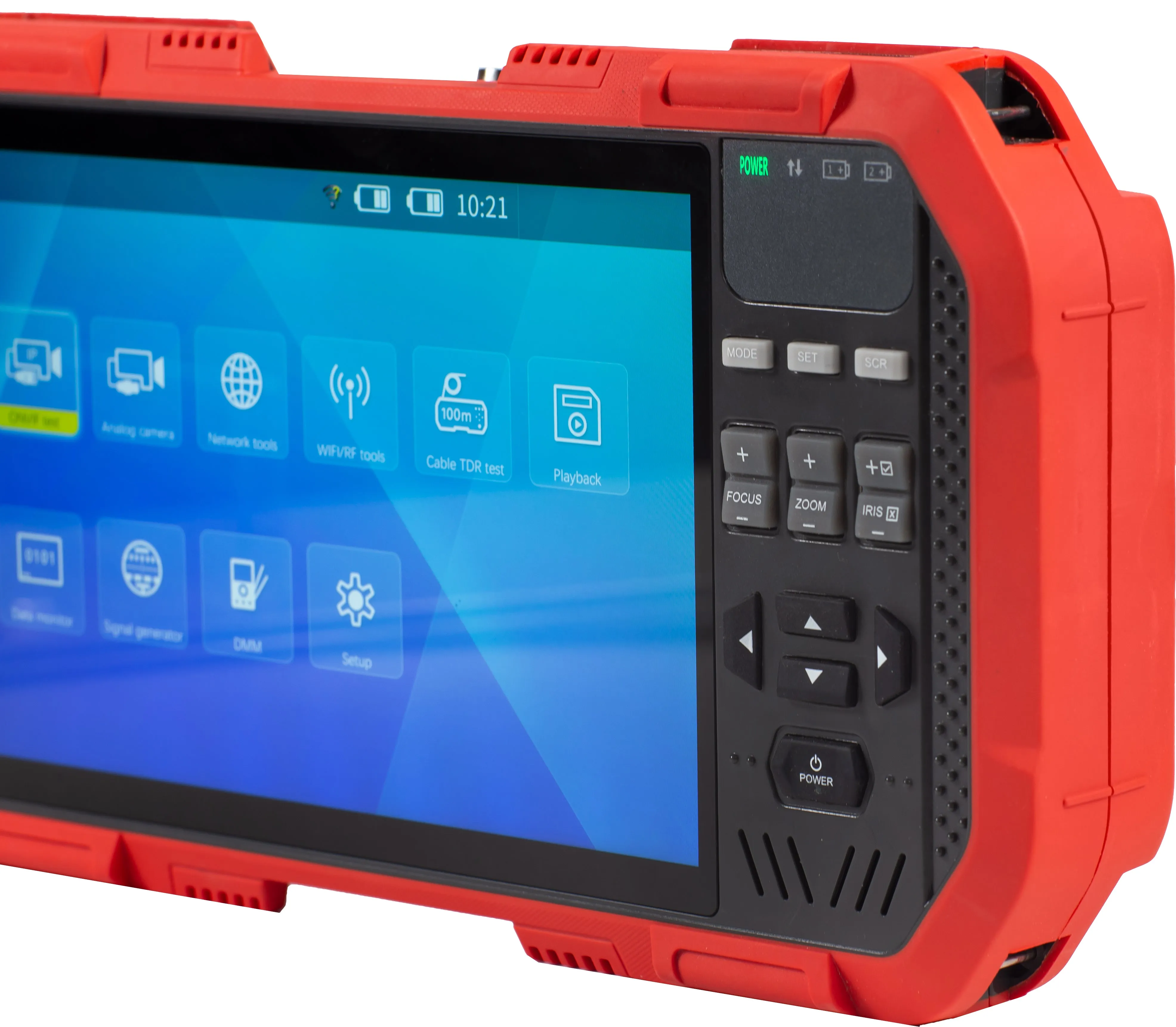

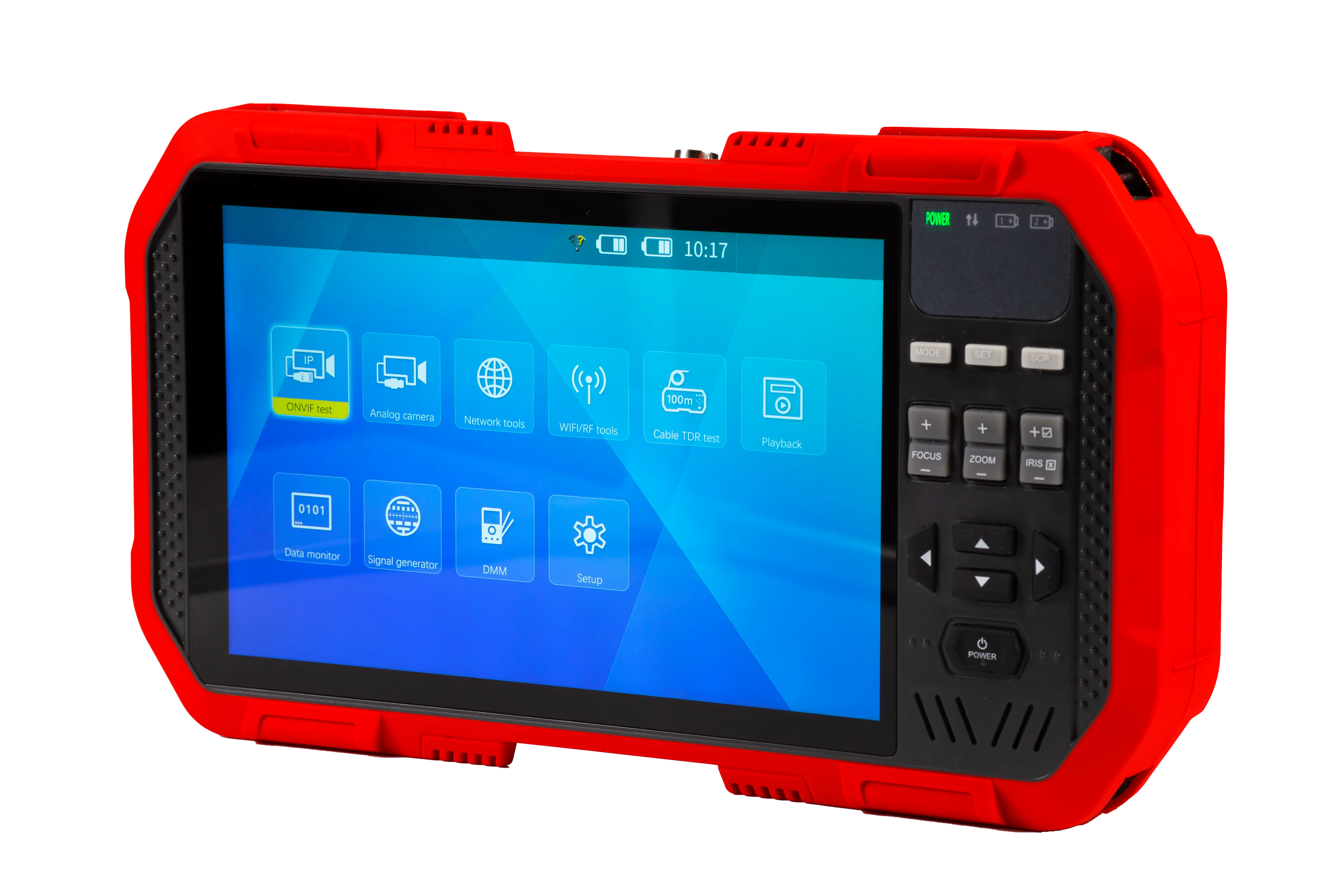

| Display | 7” TFT touchscreen , 1920 x 1200, 16.7M colors |
| Power | (2) Lithium-ion batteries; 10 hour work time |
| Dimensions/Weight | 9.3 x 5.2 x 1.8” (236.5 x 133.4 x 45.4mm) / 2lbs (907g) |
Includes
- (2) Lithium-Ion Batteries,
- Universal AC Adapter/Charger with (4) Plugs
- Ethernet Cable
- BNC/BNC Cable
- MicroUSB to USB Cable
- RS485 Cable with Extra Screw Terminal
- Audio Cable
- 12V Camera Power Cable
- Lanyard
- Carrying Case
Downloads
FAQs
-
Q. I am getting wrong password and username message
A. User name and password information is not an error of the tester. This information is the camera only. Our testers do not have any passwords or user information requirements. If you are having trouble with passwords you need to contact the camera manufacturer or refer to their manual for default user name password information or details on any special set up specifications they may have for initializing their cameras. -
Q. How do I setup an AXIS Camera to allow ONVIF Users
A. Download our Document
and Document -
Q. Is there a software upgrade that will provide all analog formats to my device?
A. Updates for the unit are performed by connecting the unit to a network via the rj45 port, going into settings, scrolling down to “System Upgrade” and hitting the right arrow. The unit will automatically look for any new updates available. This process id detailed in the user manual section 4.7.3.
When viewing analog cameras the format and pattern can be changed in the “Analog video generator” section of the main menu.
