Product Details

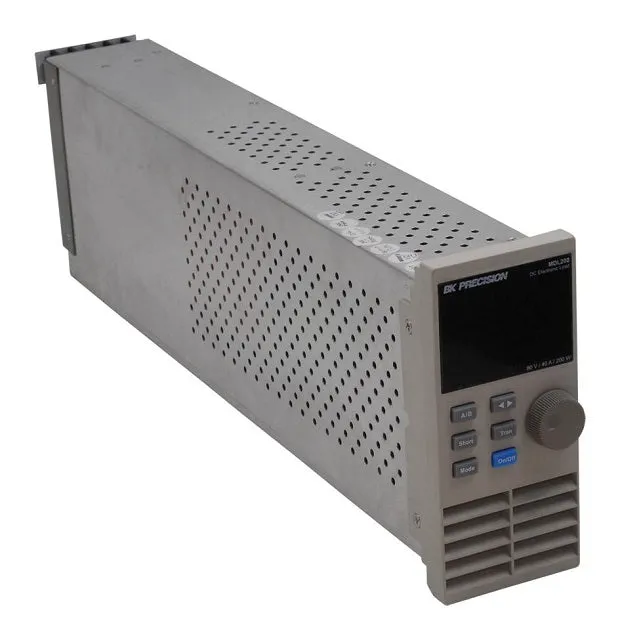

This is a New Open Box B&K Precision 1-Ch 80V 40A 200W Programmable DC Electronic Load Module. Its model number is MDL200. The MDL Series is a multi-channel modular programmable electronic load system. Six different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photo-voltaic arrays.



Features:

  • Power range up to 2400 W
  • Voltage range up to 500 V
  • Current range up to 120 A
  • CC/CV/CR/CW/CZ operating modes
  • Removable modules for easy system configurability
  • Support for up to 16 channels with mainframe extension
  • Operate identical modules in parallel mode for high current applications
  • Synchronous Load on/off function
  • Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
  • Analog current control and monitoring
  • Transient mode up to 25 kHz
  • List mode (sequence mode) - minimum 20 μs step width with 84 user programmable steps
  • Adjustable slew rate in CC mode
  • 16-bit voltage and current measurement system providing high resolution of 0.1 mV and 0.01 mA
  • Automatic test function
  • 101 memory locations to save/recall setting parameters
  • Remote sense
  • OVP/OCP/OPP/OTP and reverse voltage protection



Specifications:

  • Current Rating: 40 A
  • Power: 200 W
  • Series: MDL Series
  • Supply Voltage: 80 VDC
  • Type: Electronic Load
B&K Precision 1-Ch 80V 40A 200W Programmable DC Electronic Load Module MDL200
  • DefaultTitle

$ 76.96

$ 59.20
