Product Details

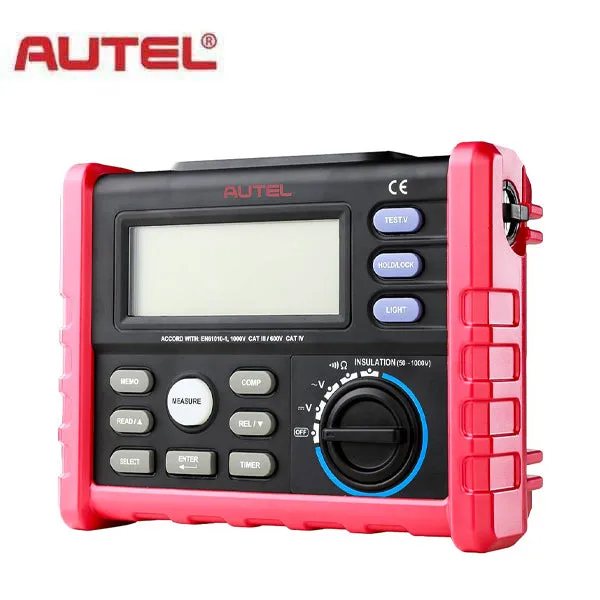

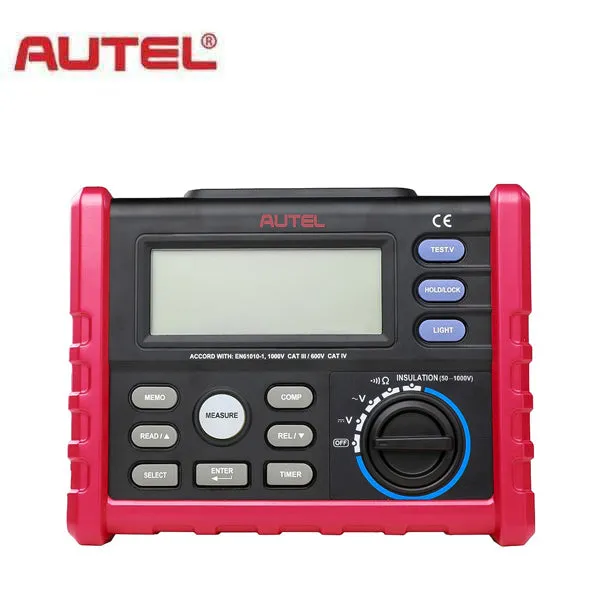

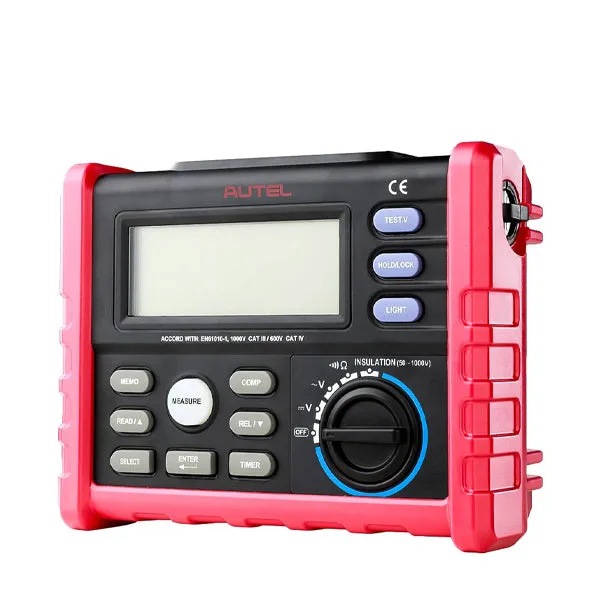

The MaxiEV ITS100 is a EV insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable, visualized data for informed decision-making during vehicle maintenance.

Features:

  • Tests high voltage wiring and components.
  • Test resistance measurement before loading into the vehicle.
  • Helps identify issues like damage, deterioration, or contamination of the insulation.
  • Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measures the resulting current flow.
  • Provides easily interpretable visualized data for informed decision-making during vehicle maintenance.
  • three measurement modes: relative, timely, and continuity.
  • Complies with IEC/EN 61010-1 1000V CAT III, 600V CAT IV measurements.
  • Use to discharge capacitors and testing/diagnosing isolation faults or shorts.
  • Automatic power-off function to conserve battery power.

Specifications:

Insulation Resistance Range  0.01MΩ ~ 10.00GΩ
Insulation Test Output Voltage 50V, 100V, 250V, 500V, 1000V
Resistance test 0.01Ω~200Ω
DC Voltage Test 0.1~1000v
AC Voltage Test 0.1V~750V
Dimensions 180mm x 140mm x 65mm
Warranty One-Year Limited Manufacturer's Warranty



Downloads:

Autel - MaxiEV ITS100 - High Voltage Electrical Component Insulation and Resistance Tester
