Features

• Dual displays permit simultaneous reading of amps and volts
• Measures AC Current to 600A and AC/DC Voltage to 600 V
• Measures frequency, capacitance to 3000 µF, and resistance to 40M?
• Measures temperature with K-type thermocouple probe
• Includes micro amps measurement for testing flame sensors
• Diode test quickly finds voltage drops
• Continuity beeper detects opens and shorts
• Auto ranging instantly selects correct range
• Hold and maximum reading functions
• New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
• Accommodates conductors up to 1.0″ (25 mm) in diameter
• Auto power off and low battery indication helps you make the most of battery life
• Rubber, over-molded case absorbs shock

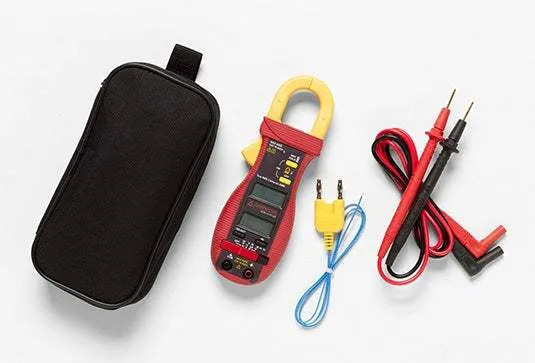

Accessories (Included)

• ACD-14 PLUS
• Test leads
• Battery (installed)
• Soft carrying pouch
• Type-K thermocouple with banana plug

Specifications

• AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
• DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
• AC Current: 40.00 A, 400.0 A, 600 A
• Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
• Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
• Frequency: 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
• Temperature: -4 °F → 999 °F (-20 °C → 537 °C)
• Dual displays: Yes
• Micro Amps: Yes
• Accommodates conductors up to 1.0″ (25 mm) in diameter

The ACD-14 PLUS is a 600 V, 600 A clamp meter from Amprobe. The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.
