Product Details

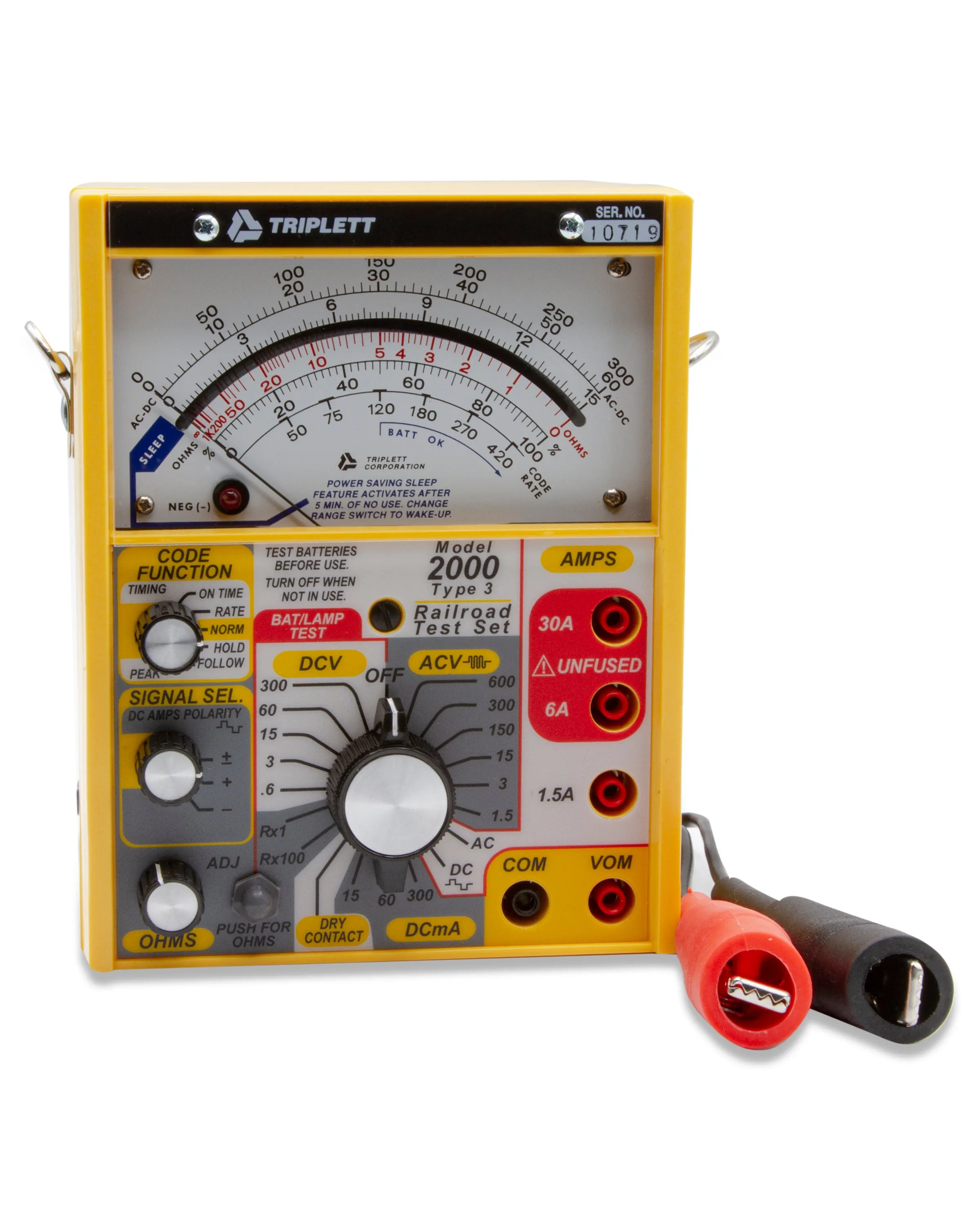

The 2000 Series Railroad Testers are designed to perform standard maintenance tasks (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment.

DESCRIPTION

The 2000 Series Railroad Testers are designed to perform standard maintenance tasks (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment. The 2000 Series is compatible with older test technologies and offers test features not found on earlier test sets.

2010/2011/2012/2013-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process

CATEGORY:

Features
  • Base unit with no Cab Filters
  • Auto Polarity in DC functions
  • Both Auto and Selectable DC Amps Polarity
  • Direct measurement of Code Parameters
  • Ohmmeter Voltage Mode detects foreign AC or DC Voltages
  • Relay Contact On Time (Dry Contact) requires no adjustment
  • Peak measurements require no adjustment
  • Lead time for NIST Certified products is 5-7 business days
  • Upon order placement, please provide the company name that should appear on the certificate.  Without this information, we will not be able to provide a certificate of calibration.
Product Overview

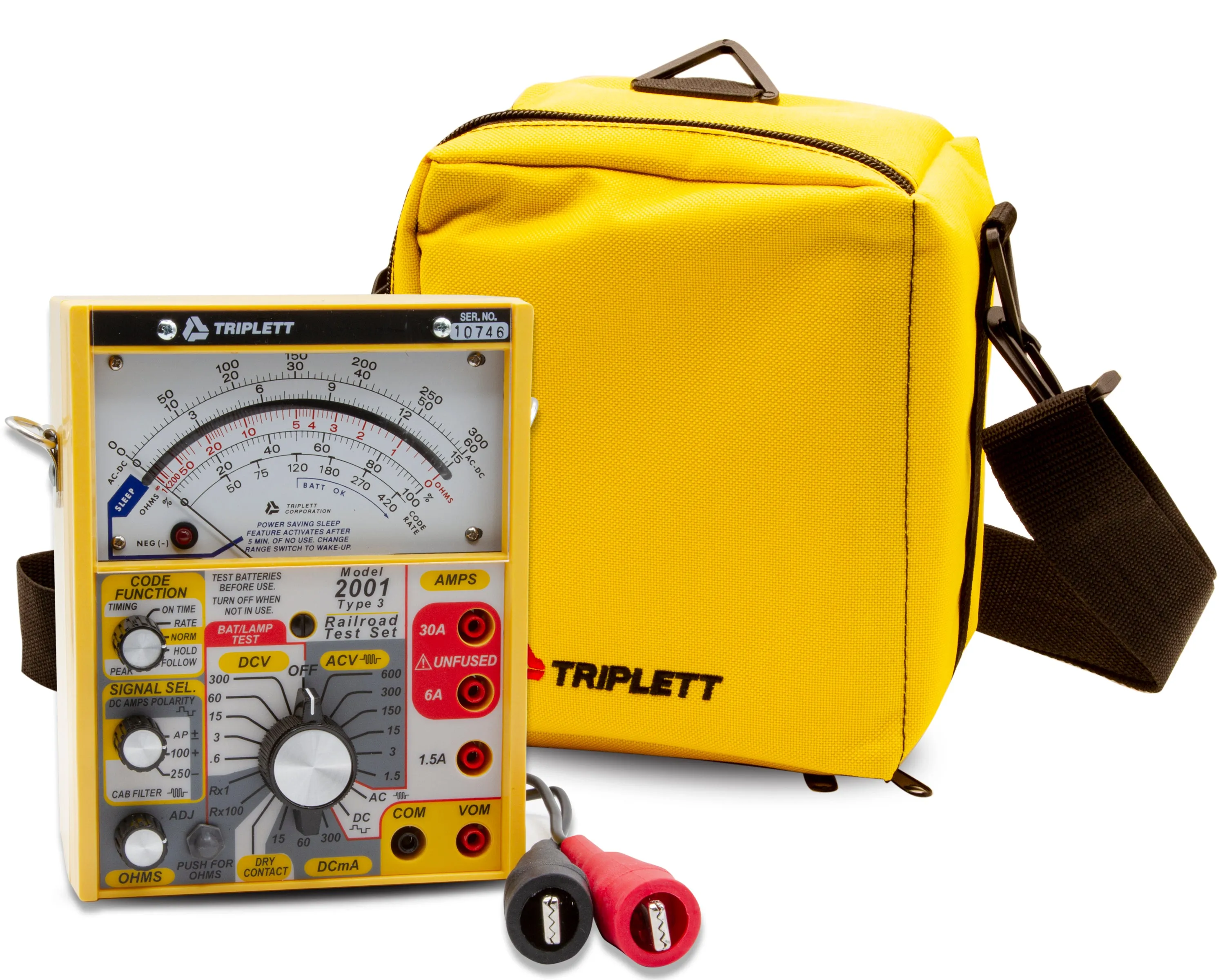

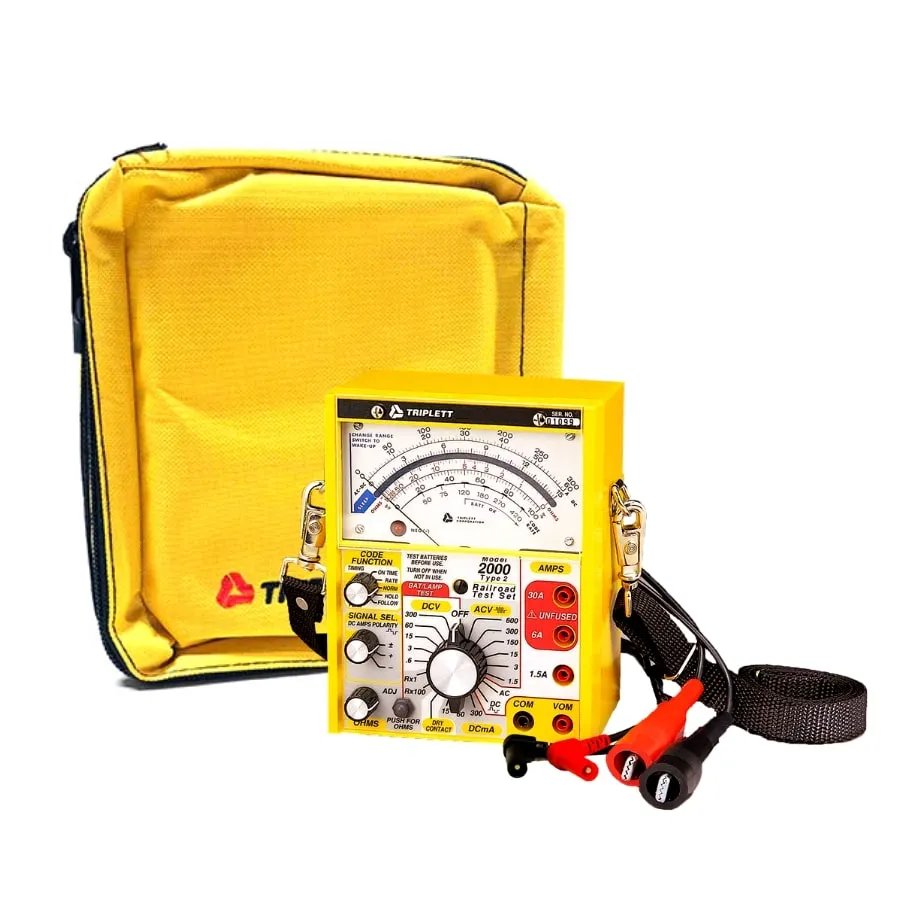

Fewer jacks, more ranges, and a logical front panel layout all contribute to the 2000 Series' ease of use. A precision multi-turn Ohms Adjust Control facilitates accurate resistance measurements. Also, the measurement of relay contact On Time has been simplified and expanded requiring no adjustments. Code Parameter measurements have been made simpler and more accurate. It is no longer necessary to count pointer swings to measure On Time. It can be measured on live signals as well as relay contacts. Peak Levels can be determined quickly and automatically, and adjustments to the code equipment peak level can be made without constantly readjusting the Test Set. Some models offer Cab filters, allowing measurement of the individual Cab Signal carrier frequencies, whether coded or un-coded. All 2000 Series Railroad Testers include: test leads, padded water repellent carrying case, shoulder Strap, and batteries.

Specifications
Specifications Model 2000 Model 2001 Model 2002 Model 2003
DC Voltage 0.6V, 3V, 15V, 60V, 300V 0.6V, 3V, 15V, 60V, 300V 0.6V, 3V, 15V, 60V, 300V 0.6V, 3V, 15V, 60V, 300V
DCV Accuracy ±1.5% FS ±1.5% FS ±1.5% FS ±1.5% FS
DC Milliamps 16mA, 60mA, 300mA 16mA, 60mA, 300mA 16mA, 60mA, 300mA 16mA, 60mA, 300mA
DC mA Accuracy ±1.5% FS ±1.5% FS ±1.5% FS ±1.5% FS
DC Amps 1.5A, 6A, 30A 1.5A, 6A, 30A 1.5A, 6A, 30A 1.5A, 6A, 30A
DCA Accuracy ±1.5% FS ±1.5% FS ±1.5% FS ±1.5% FS
AC Voltage 1.5V, 3V, 15V, 150V, 300V, 600V 1.5V, 3V, 15V, 150V, 300V, 600V 1.5V, 3V, 15V, 150V, 300V, 600V 1.5V, 3V, 15V, 150V, 300V, 600V
ACV Accuracy ±3.0% FS ±3.0% FS ±3.0% FS ±3.0% FS
AC Amps 1.5A, 6A, 30A 1.5A, 6A, 30A 1.5A, 6A, 30A 1.5A, 6A, 30A
ACA Accuracy ±3.0% FS ±3.0% FS ±3.0% FS ±3.0% FS
Cab Filter Response
(All AC ranges)
60Hz: —
100Hz: —
200Hz: —
250Hz: —
60Hz: —
100Hz: 92 to 100Hz
200Hz: —
250Hz: 245 to 255Hz
60Hz: —
100Hz: 92 to 100Hz
200Hz: 196 to 204Hz
250Hz: —
60Hz: 57 to 63Hz
100Hz: 92 to 100Hz
200Hz: —
250Hz: —
Code Functions
(All AC and DC Ranges)
On Time: 3% to 100% (±3% FS)
Rate: 30 to 500CPM (±3% FS)
Peak Hold: Ö
Peak Follow: Ö
On Time: 3% to 100% (±3% FS)
Rate: 30 to 500CPM (±3% FS)
Peak Hold: Ö
Peak Follow: Ö
On Time: 3% to 100% (±3% FS)
Rate: 30 to 500CPM (±3% FS)
Peak Hold: Ö
Peak Follow: Ö
On Time: 3% to 100% (±3% FS)
Rate: 30 to 500CPM (±3% FS)
Peak Hold: Ö
Peak Follow: Ö
Volt Senese Mode 15V AC or DC (±20%) 15V AC or DC (±20%) 15V AC or DC (±20%) 15V AC or DC (±20%)
Resistance Range: R x 1 and R x 100
Center Scale: 5 and 500 ohms
Accuracy: ±2% of scale length
Range: R x 1 and R x 100
Center Scale: 5 and 500 ohms
Accuracy: ±2% of scale length
Range: R x 1 and R x 100
Center Scale: 5 and 500 ohms
Accuracy: ±2% of scale length
Range: R x 1 and R x 100
Center Scale: 5 and 500 ohms
Accuracy: ±2% of scale length
Dry Contact Allowable Resistance: 0 to 100 ohms
Test Voltage: 7.5 to 15VDC
Test Current: less than 1mA
Allowable Resistance: 0 to 100 ohms
Test Voltage: 7.5 to 15VDC
Test Current: less than 1mA
Allowable Resistance: 0 to 100 ohms
Test Voltage: 7.5 to 15VDC
Test Current: less than 1mA
Allowable Resistance: 0 to 100 ohms
Test Voltage: 7.5 to 15VDC
Test Current: less than 1mA
Power (2) 9V; (1) 1.5V D cell
Dimensions 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm)
Weight 4.75 lbs (2.15kg)  with case and leads 4.75 lbs (2.15kg)  with case and leads 4.75 lbs (2.15kg)  with case and leads 4.75 lbs (2.15kg)  with case and leads
